(1.93.3/01) - (VAR.852-858) SEAT - L/CAB

Запчасти Case IH MXU115 (1.93.3/01) - (VAR.852-858) SEAT - L/CAB (10) - OPERATORS PLATFORM/CAB

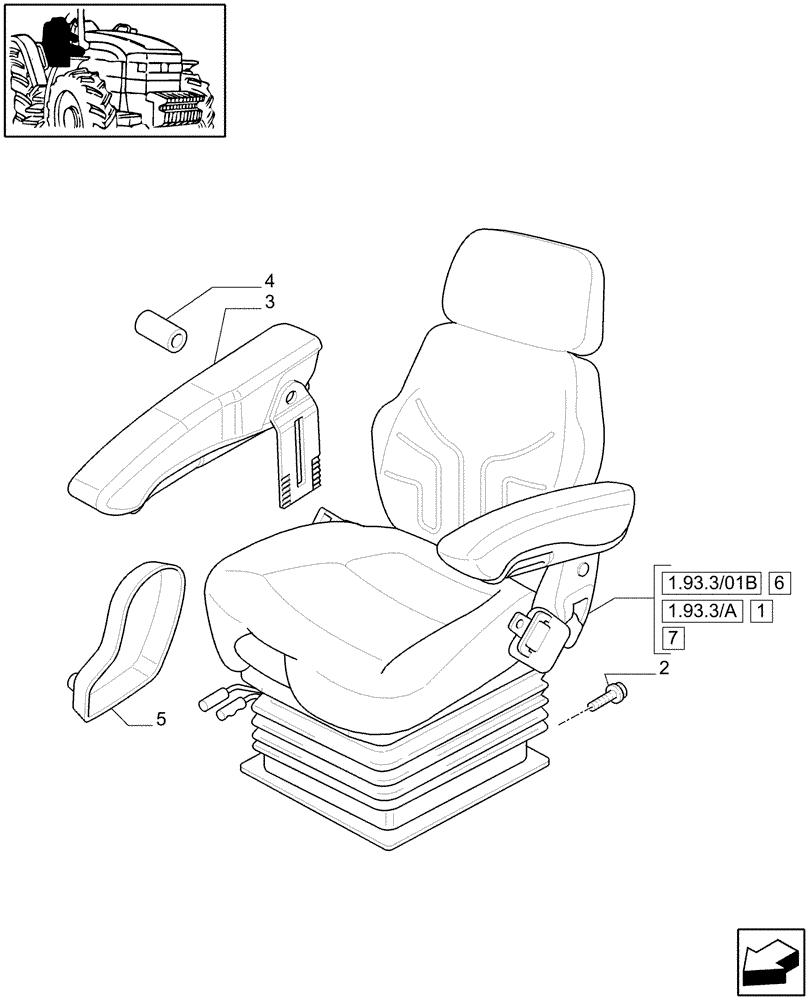

Схема запчастей Case IH MXU115 - (1.93.3/01) - (VAR.852-858) SEAT - L/CAB (10) - OPERATORS PLATFORM/CAB
1
3
7
1.93.3/01b
1.93.3/a
2
4
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82023113

DRIVER SEAT

MXU100, MXU115

1шт.

Equip. 852: Mech. Seat Deluxe L/Belt and L/Operator Presence Switch

1шт.

2

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

82025110

ARMREST

1шт.

4

82032523

COVER

1шт.

5

82023115

COVER

1шт.

6

82023114

DRIVER SEAT

, Serial Range: -C5518

1шт.

Equip. 858: Mech. Seat Deluxe W/Belt and W/Operator Presence Switch

1шт.

7

87579877

DRIVER SEAT

, Start Serial: D5518

1шт.

Equip. 858: Mech. Seat Deluxe W/Belt and W/Operator Presence Switch

1шт.
