Запчасти Case IH MXU115 (1.93.3[02]) - SEAT - W/CAB (10) - OPERATORS PLATFORM/CAB

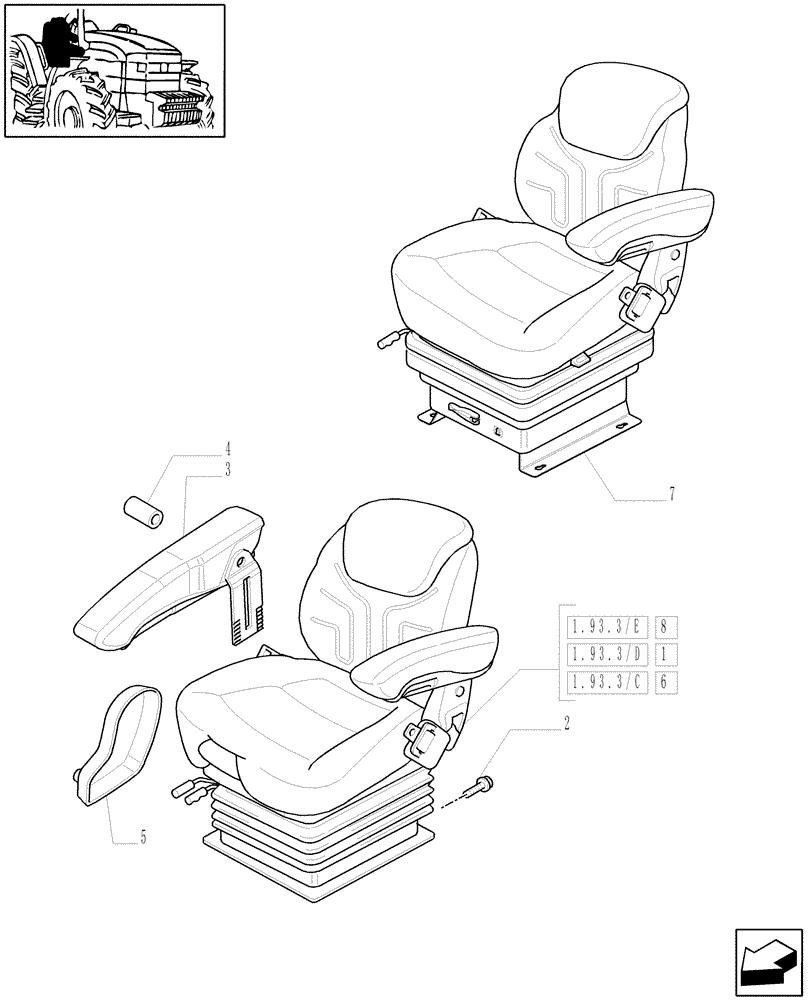

Схема запчастей Case IH MXU115 - (1.93.3[02]) - SEAT - W/CAB (10) - OPERATORS PLATFORM/CAB
7
1.93.3/e
1
6
4
3
5
1.93.3/d
2
1.93.3/c
8

Артикул

Название

Примечание

Количество

1

82023090

DRIVER SEAT

, Serial Range: -C5052

1шт.

STD Equip. : Air Seat W/Belt and W/Operator Presence Switch

1шт.

2

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

82025110

ARMREST

MXU100, MXU110, MXU115, MXU125

1шт.

3

82025111

ARMREST

MXU100, MXU110, MXU115, MXU125

1шт.

With Mech. Joystick L/EDC (VAR.335-723)

1шт.

4

82032523

COVER

1шт.

5

82023115

COVER

1шт.

6

82023084

DRIVER SEAT

, Serial Range: -C5424

1шт.

Equip. 858/1-885 : Air Deluxe Seat W/Belt and W/Operator Presence Switch

1шт.

7

87309520

DRIVER SEAT

, Start Serial: D5052

1шт.

STD Equip.: Mech. Premium Seat W/Belt and W/Operator Presence Switch

1шт.

8

87519645

DRIVER SEAT

, Start Serial: D5424

1шт.

Equip. 858/1-885 : Air Deluxe Seat W/Belt and W/Operator Presence Switch

1шт.

Выбрано товаров: 14
