Запчасти Case IH MXU115 (1.93.0/02) - (VAR.015-361-363-375-376-377-378) ELECTRONIC CONTROL VALVES - CONTROL COVERS (W/CAB) (10) - OPERATORS PLATFORM/CAB

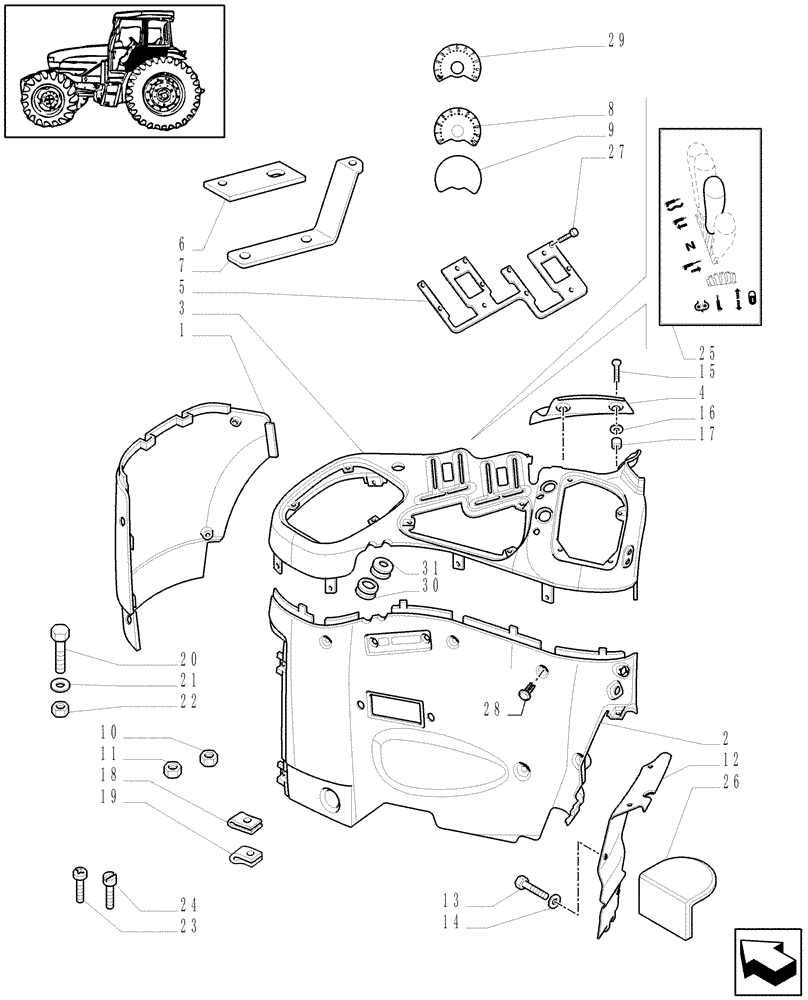

Схема запчастей Case IH MXU115 - (1.93.0/02) - (VAR.015-361-363-375-376-377-378) ELECTRONIC CONTROL VALVES - CONTROL COVERS (W/CAB) (10) - OPERATORS PLATFORM/CAB
1
4
7
1
2
2
1
30
1
3
4
2
2
2
31
5
9
1
2
8
2
6
2
6
5
0
29
3
7
3
1
1
8
1
4
1
9
2
1
1
6
1
1
2
28
5
0
7
2

Артикул

Название

Примечание

Количество

1

47057394

SOFT TRIM

1шт.

2

47057484

PANEL

, Serial Range: -C5844

1шт.

2

87614807

PANEL

, Serial Range: D5844-C5987

1шт.

2

87710212

PANEL

, Start Serial: D5987

1шт.

3

47057214

PANEL

w/electronic hydraulic remotes

1шт.

3

47057482

PANEL

l/electronic hydraulic remotes

1шт.

4

47057398

SOFT TRIM

1шт.

5

47057198

SUPPORT

1шт.

6

47057502

PLATE

1шт.

7

87570997

BRACKET

1шт.

8

87750156

DECAL

1шт.

9

47057127

COVER PLATE

, Serial Range: -C5981

1шт.

9

87498617

COVER PLATE

, Start Serial: D5981

1шт.

10

15896211

NUT,M6, Cl 8

1шт.

11

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

1шт.

12

82027462

PANEL

1шт.

located behind seat, underneath rear window

1шт.

13

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

4шт.

14

17094714

LOCK WASHER,M6 x 13

4шт.

15

82024754

STUD,Phillips Drive, Flat HD, M6 x 18mm

6x18

2шт.

16

81875581

RETAINER,6mm ID x 12.5mm OD x 0.5mm Thk

2шт.

17

83994515

SPRING CLIP

2шт.

18

14371271

SPRING NUT,M5, U, 23.7mm long

8шт.

19

14371771

SPRING NUT,M6, U, 24.3mm long

1шт.

20

82880745

SCREW,Phillips Drive, Pan HD, M4 x 16mm, Cl 4.8

M4x16

1шт.

21

82935771

WASHER,5.6mm ID x 12.7mm OD x 1.25mm Thk

1шт.

22

83903071

NUT,Hex, Thin, M4

1шт.

23

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

3шт.

24

13274214

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

12шт.

25

47057810

DECAL

1шт.

26

82024718

PANEL

1шт.

27

13271917

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

8шт.

28

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

4шт.

29

87498611

DECAL

, Start Serial: D5981

1шт.

30

D5NN14603K

GROMMET

14.27 x 19.05 x 25.40

1шт.

31

83905020

GROMMET,6.35mm ID x 22.22mm OD, Black

6.35 x 16.25 x 22.25

1шт.

Выбрано товаров: 36
