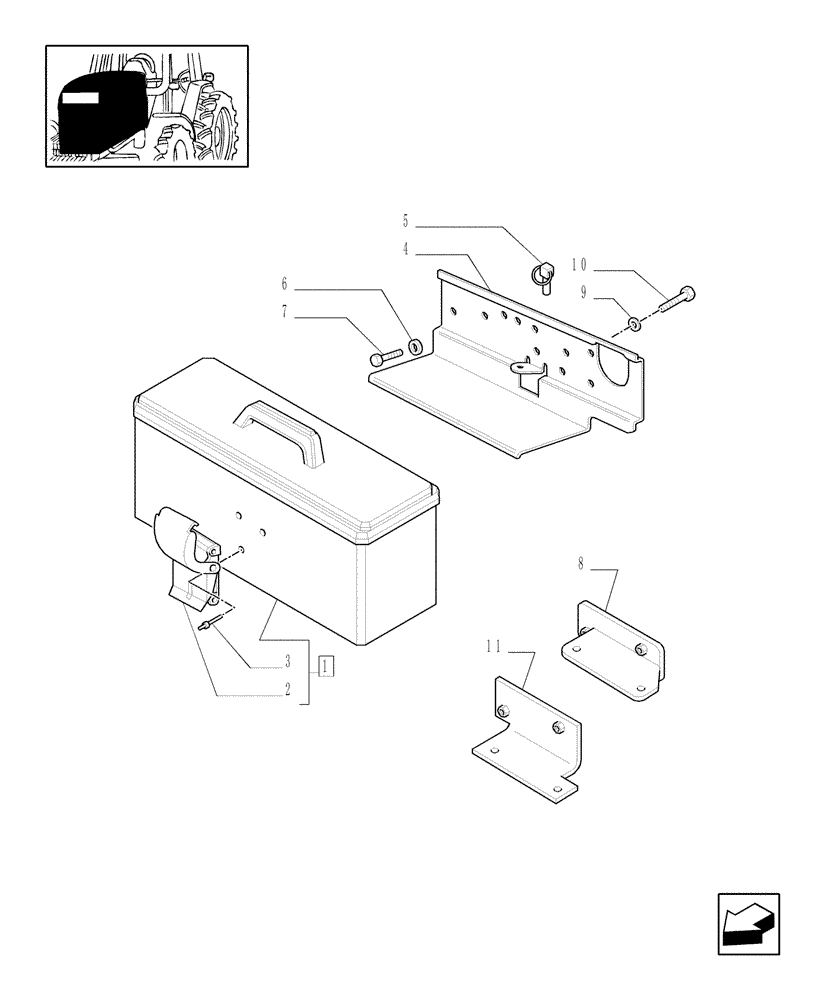

Запчасти Case IH MXU115 (1.90.5) - TOOL BOX (10) - OPERATORS PLATFORM/CAB

1

5137750

TOOL BOX

13" long (305MM) x 7" wide x 6" tall

1шт.

2

5135576

LATCH

1шт.

3

14641391

RIVET,Tr Hd, M3.2 x 8, Aluminum

3шт.

4

87352406

SUPPORT

1шт.

5

82013836

ROLL PIN,6mm OD

LOCK PIN

1шт.

6

10516674

LOCK WASHER,M8

2шт.

7

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

8

82033843

BRACKET

, Serial Range: -C5146

1шт.

9

11106424

SCREW,Hex, M10 x 30mm, Cl 8.8, Full Thd

2шт.

10

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

11

87304839

SUPPORT

, Start Serial: D5146

1шт.
