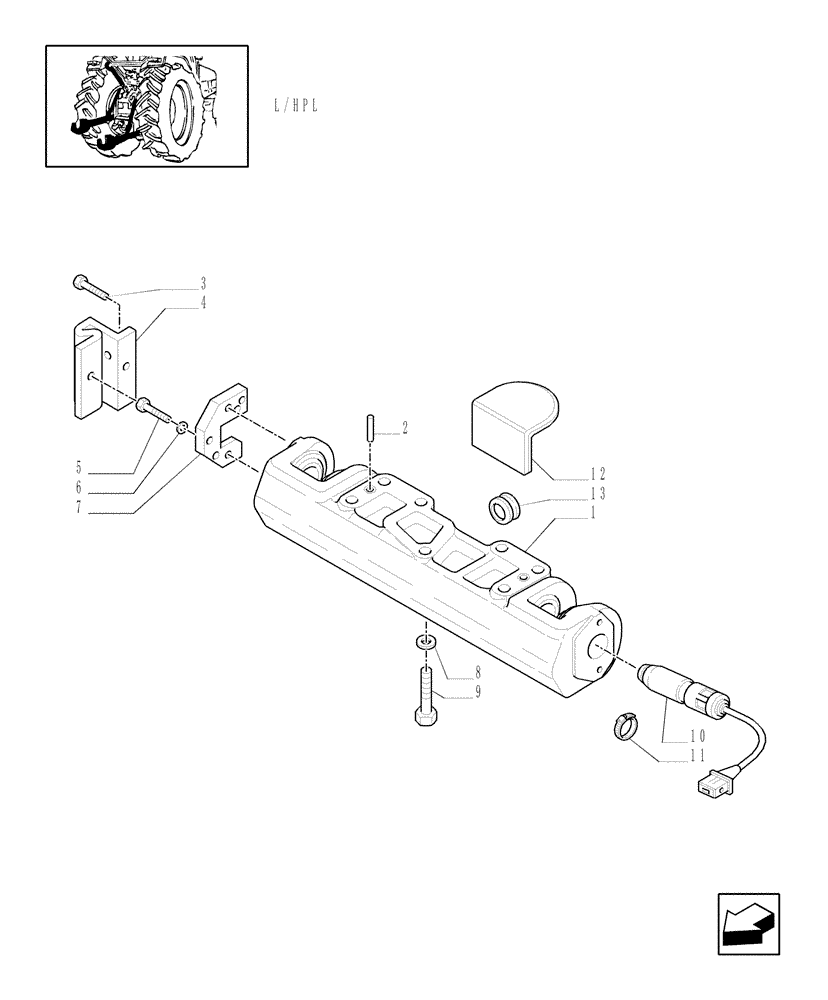

Запчасти Case IH MXU115 (1.89.6/06) - (VAR.719) 2 CILINDERS - TOOLING CONNECTION UNIT (09) - IMPLEMENT LIFT

1

5192062

SUPPORT

INCL.2

1шт.

2

5119529

DOWEL,15mm OD x 22mm L

15X22

2шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

4

83998829

COVER

RH

1шт.

4

83998830

COVER

LH

1шт.

5

14307731

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 10.9, Full Thd

4шт.

6

47130824

LOCK WASHER,Nordlock, 10.70mm ID x 21.00mm OD x 2.50mm

4шт.

7

83998827

RETAINER

2шт.

8

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

7шт.

9

11369634

BOLT,Hex, M16 x 1.5 x 110, 10.9

7шт.

10

82006080

SENSOR

Pin Draft

2шт.

11

14560287

CABLE TIE,207.00mm L

COLLAR

2шт.

12

82024718

PANEL

1шт.

13

81862738

PLUG,M38 x 28 x 5mm

28MM

1шт.
