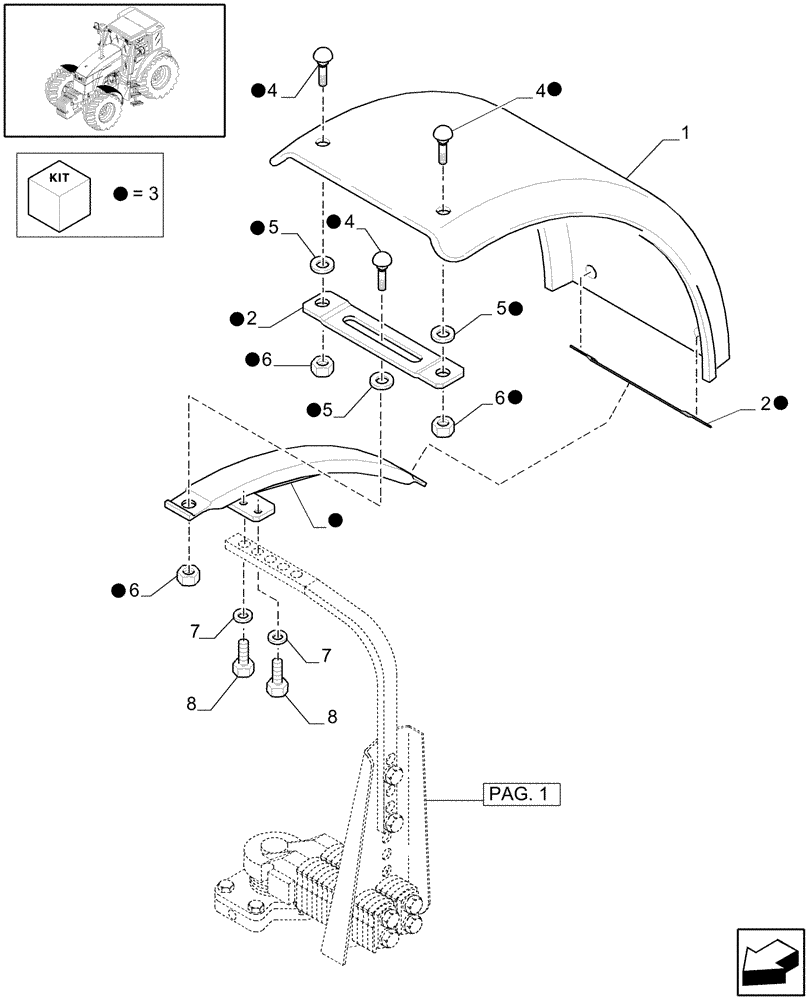

Запчасти Case IH MXU115 (1.87.4/01[03]) - (VAR.337-338) 4WD DYNAMIC FRONT FENDERS WITH AXLE WITH BRAKE - C5049 (08) - SHEET METAL

1

82020500

FRONT FENDER

MM.420 (VAR.337)

2шт.

1

82020501

FRONT FENDER

MM.480 (VAR.338)

2шт.

2

82021040

SUPPORT

4шт.

3

82842819

SUPPORT

LH

1шт.

3

82842818

SUPPORT

RH

1шт.

4

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

12шт.

5

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

12шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

12шт.

7

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

8

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.
