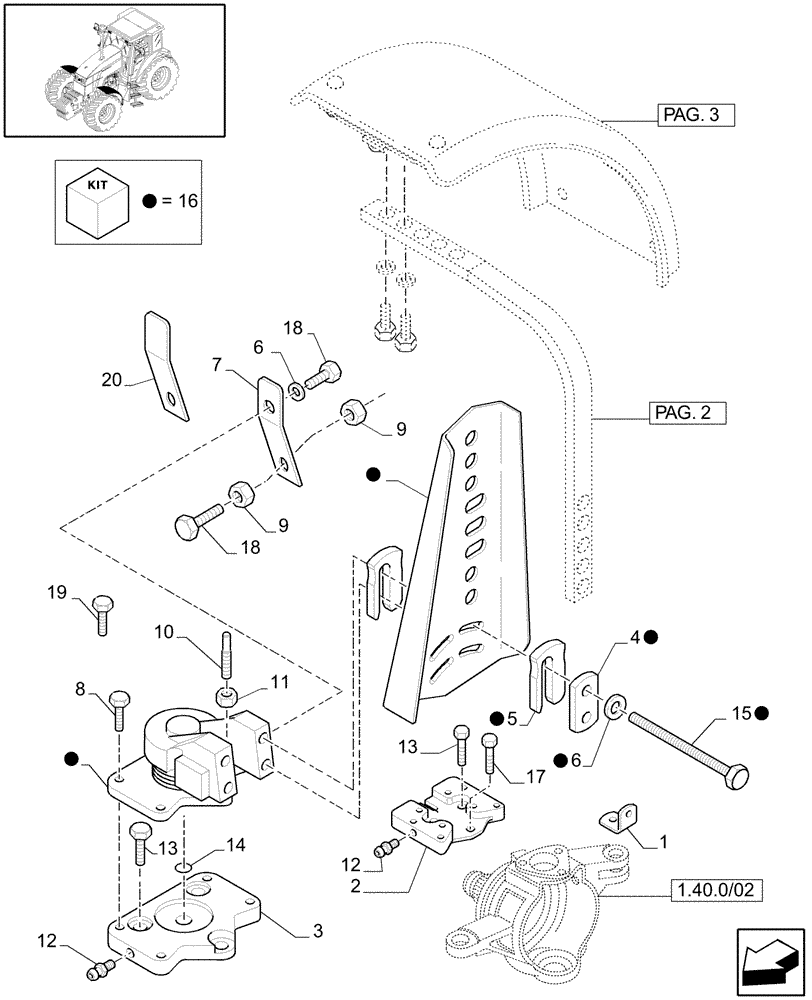

Запчасти Case IH MXU115 (1.87.4[01A]) - (VAR.167-497) 4WD DYNAMIC FRONT FENDERS - D5040 - C5049 (08) - SHEET METAL

1

82039212

BRACKET

2шт.

2

5198881

PLATE

LH

1шт.

2

5198882

BRACKET

RH

1шт.

3

82027948

PLATE

2шт.

4

82021149

SPACER

4шт.

5

82020467

SPACER

52шт.

6

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10шт.

7

82029380

BRACKET

VAR.497

2шт.

8

15970824

SCREW,Hex, M10 x 1.25 x 32mm, Cl 8.8, Full Thd

8шт.

9

12164714

NUT,M10 x 1.25, Cl 8

4шт.

10

82020469

SCREW,M14 x 1.5 x 1.5mm

2шт.

11

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

2шт.

12

13407211

LUBE NIPPLE,M10 x 1

2шт.

13

14274734

LOCK BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9

8шт.

14

14457581

O-RING,0.799" ID x 0.103" Width

2шт.

15

15232424

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8, Full Thd

8шт.

16

82039219

HUB

1шт.

16

82039218

HUB

1шт.

17

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

2шт.

18

15231624

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8, Full Thd

4шт.

19

16054724

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

20

82039215

BRACKET

VAR.167

2шт.
