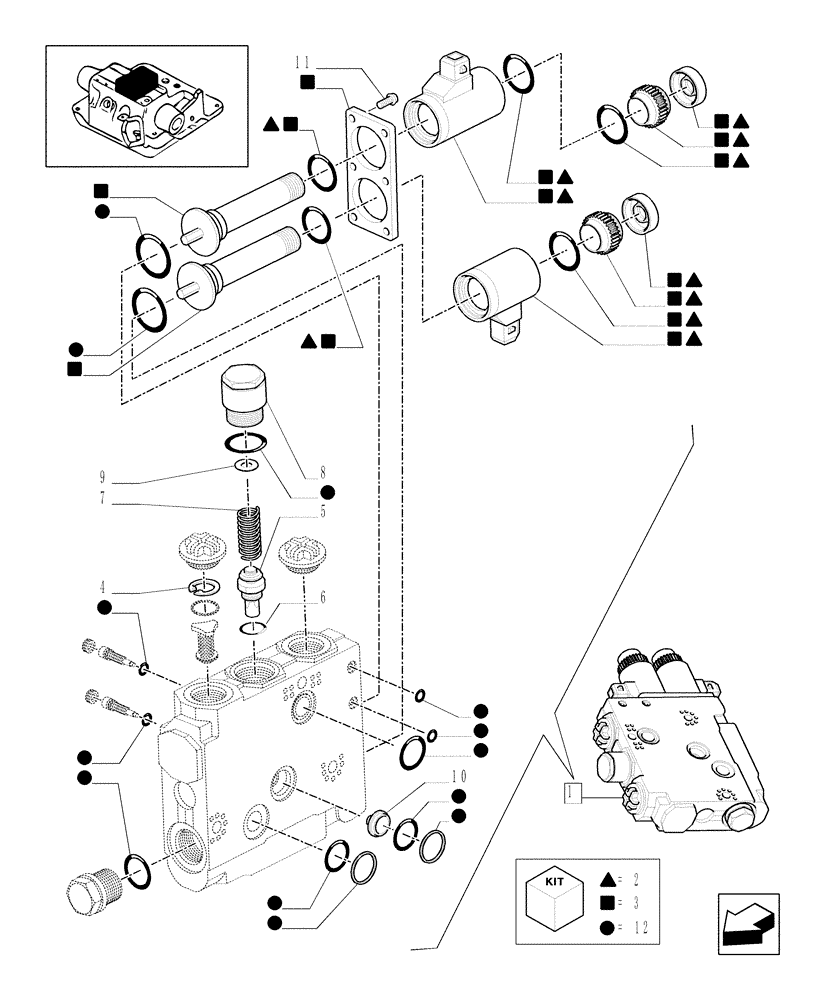

Запчасти Case IH MXU115 (1.82.7/ E) - VALVE CONTROL BREAKDOWN - C5504 (07) - HYDRAULIC SYSTEM

1

5192187

CONTROL VALVE

1шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all CASE IH TRACTOR (7/03-) Reman for New P/N 5192187

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

2

47129412

REPAIR KIT

, Serial Range: -C5029

1шт.

2

5188024

KIT

Raise Solenoid, Start Serial: D5029

1шт.

3

47129414

SOLENOID,3.35A

1шт.

4

47129418

RETAINER

1шт.

5

47129415

INSERT

1шт.

6

47129408

O-RING

1шт.

7

47129411

SPRING

1шт.

8

47129410

PLUG,Hex, 29.2mm OD

1шт.

9

47129405

SHIM,0.50mm Thk

1шт.

9

47129406

SHIM,0.30mm T

1шт.

9

47129407

SHIM,0.40mm T

1шт.

9

47129416

SHIM,0.80mm T

1шт.

10

5191776

VALVE

, Serial Range: -C5029

1шт.

10

47127006

VALVE

, Start Serial: D5029

1шт.

11

47129409

SET SCREW,Oval Head

6шт.

12

47129413

SEAL KIT

1шт.
