Запчасти Case IH MXU115 (1.82.7/ C) - QUICK HITCH ASSEMBLY & RELATED PARTS (07) - HYDRAULIC SYSTEM

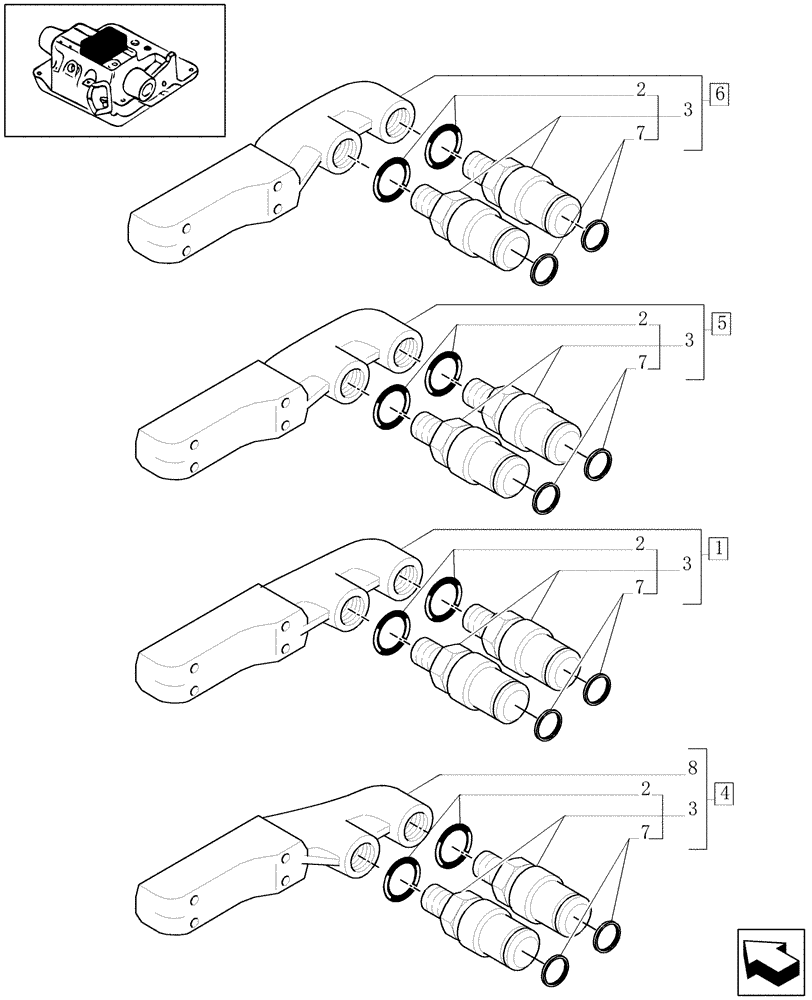

Схема запчастей Case IH MXU115 - (1.82.7/ C) - QUICK HITCH ASSEMBLY & RELATED PARTS (07) - HYDRAULIC SYSTEM
8
3
2
7
5
2
4
3
2
1
7
6
2
7
3
7
3

Артикул

Название

Примечание

Количество

1

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

1

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

8шт.

3

5190882

PUSH-PULL COUPLING

, Serial Range: -C5279

8шт.

3

87381944

COUPLING, QUICK, FEM

, Start Serial: D5279

8шт.

4

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

4

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

5

47123063

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

With Four Remotes Valves

1шт.

5

87381964

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

With Four Remotes Valves

1шт.

6

47123065

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

With Four Remotes Valves

1шт.

6

87381965

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

With Four Remotes Valves

1шт.

7

47134601

SEAL

8шт.

Used with 47134599 coupler.

1шт.

8

47123058

HOLDER

1шт.

Выбрано товаров: 18
