Запчасти Case IH MXU115 (1.82.7/52[03]) - (VAR.372-418) HYDRAULIC VALVES WITH TRAILER BRAKE VALVE - VALVE PIPES (07) - HYDRAULIC SYSTEM

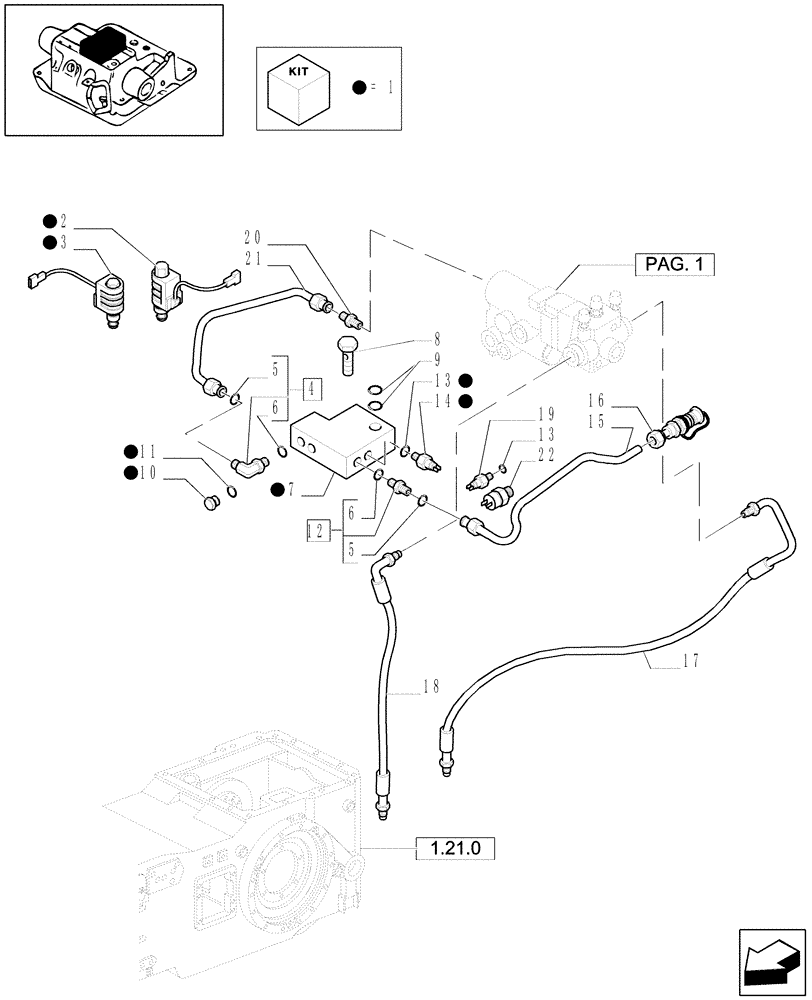

Схема запчастей Case IH MXU115 - (1.82.7/52[03]) - (VAR.372-418) HYDRAULIC VALVES WITH TRAILER BRAKE VALVE - VALVE PIPES (07) - HYDRAULIC SYSTEM
20
7
1
1
6
1
10
6
14
15
21
13
1
11
1
22
4
19
2
12
1
3
17
1
13
8
9
5
1
5
18
16

Артикул

Название

Примечание

Количество

1

5196175

BRAKE VALVE

ASSY

1шт.

2

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

3

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

4

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

13/16"-16, M18X1,5, Includes Ref.5, 6

1шт.

5

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

2шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

7

5196170

BLOCK

1шт.

8

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

9

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

M18X1,5

2шт.

10

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

11

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

12

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

Includes Ref.5, 6

1шт.

13

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

2шт.

14

82030730

SWITCH ASSY

Oil, Serial Range: -C5703

1шт.

14

5157750

PRESSURE SWITCH

, Start Serial: D5703

1шт.

15

47126091

HYD TUBE

1шт.

16

44015354

QUICK MALE COUPLING

1шт.

17

5196663

FLEXIBLE HOSE

RH

1шт.

18

5196661

FLEXIBLE HOSE,4.75mm ID x 350mm L

LH

1шт.

19

5161047

PRESSURE SWITCH

VAR.372

1шт.

19

82033989

SWITCH ASSY

Pressure, Trailer Brake, VAR.418, Serial Range: -C5584

1шт.

20

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

21

47124762

HYD TUBE

13/16"-16

1шт.

22

87604423

SWITCH ASSY

Pressure, Trailer Brake, 15 Bar, VAR.418, Start Serial: D5584

1шт.

Выбрано товаров: 24
