Запчасти Case IH MXU115 (1.82.7/49[02]) - (VAR.015) 3 "CCLS" (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM

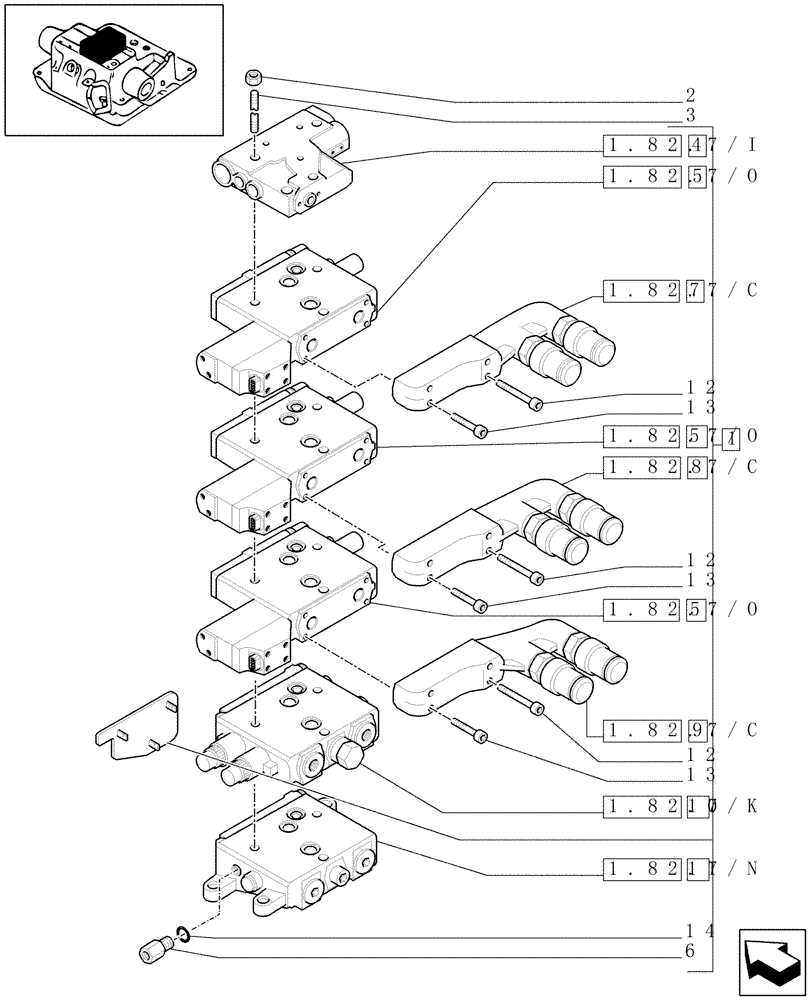

Схема запчастей Case IH MXU115 - (1.82.7/49[02]) - (VAR.015) 3 "CCLS" (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM
1.82.7/o
7
11
1.82.7/i
5
10
1.82.7/k
1.82.7/o
1.82.7/o
5
2
1
12
9
8
4
13
14
5
1.82.7/c
13
1.82.7/c
3
1.82.7/n
6
13
1.82.7/c
12
12

Артикул

Название

Примечание

Количество

1

87311426

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

47131731

TIE-ROD,235mm L

3шт.

4

47123078

HYDRAULIC VALVE

1шт.

5

84125295

VALVE SECTION,Electronic Control

3шт.

84125295R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all (7/03-)

3шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

6

5191704

CHECK VALVE

Incl. 14

1шт.

7

47123063

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

7

87381964

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

8

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

8

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

87546170

CONTROL VALVE

1шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all CASE IH TRACTOR (7/03-) Reman for New P/N 87546170

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU115, MXU125, MXU135 ALL CASE IH TRACTOR (7/03-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

Выбрано товаров: 23
