Запчасти Case IH MXU115 (1.82.7/46[02]) - (VAR.012) 3 REMOTES(1NC+2CONFIG) FOR FIXED DISPLACEMENT PUMP FOR EDC AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

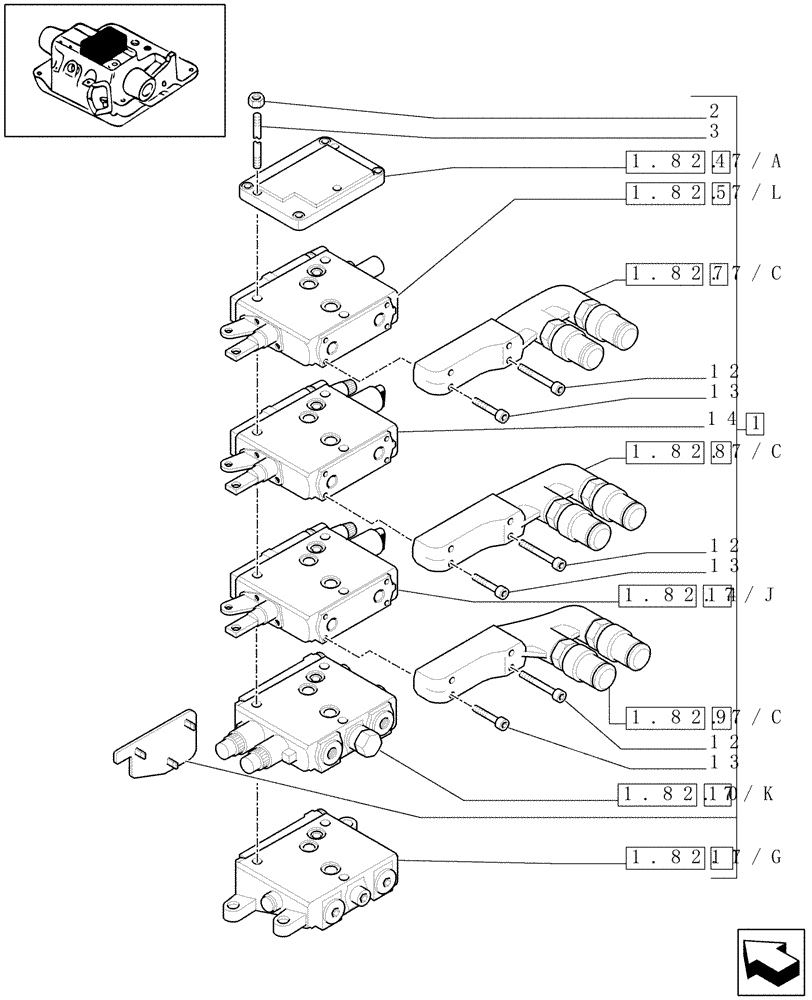

Схема запчастей Case IH MXU115 - (1.82.7/46[02]) - (VAR.012) 3 REMOTES(1NC+2CONFIG) FOR FIXED DISPLACEMENT PUMP FOR EDC AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM
13
10
9
3
1.82.7/g
13
1
12
4
8
13
12
1.82.7/c
14
5
2
1.82.7/j
1.82.7/l
1.82.7/a
1.82.7/c
1.82.7/c
11
1.82.7/k
14
12
7

Артикул

Название

Примечание

Количество

1

87311383

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

47123183

STUD,M8

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

1шт.

87546169R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 all (7/03-)

1шт.

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

7

47123063

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

7

87381964

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

8

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

8

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

87546170

CONTROL VALVE

1шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 all CASE IH TRACTOR (7/03-) Reman for New P/N 87546170

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

5192186

DISTRIBUTOR

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

14

87328572

HYD VALVE SECTION

2шт.

87328572R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, ALL (7/03-)

2шт.

87328572C

CORE-VALVE HYD

Return Number

1шт.

Выбрано товаров: 23
