Запчасти Case IH MXU115 (1.82.7/44[02]) - (VAR.010) 4 REMOTES(2NC+2CONFIG) FOR CCLS PUMP FOR EDC AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

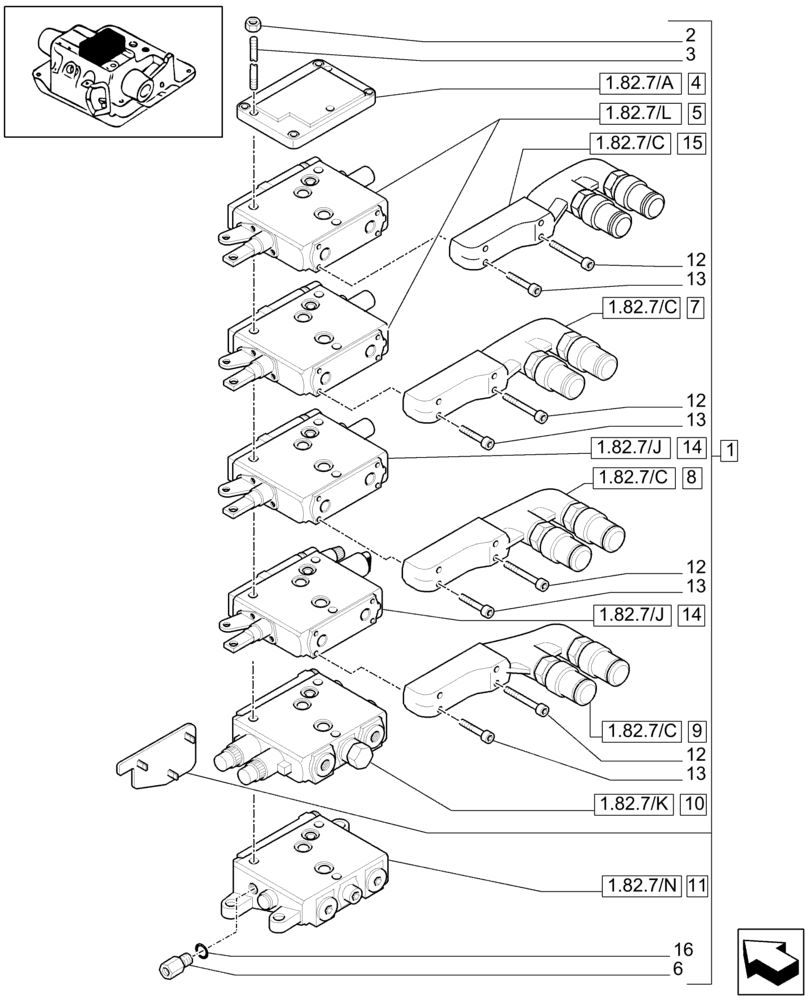

Схема запчастей Case IH MXU115 - (1.82.7/44[02]) - (VAR.010) 4 REMOTES(2NC+2CONFIG) FOR CCLS PUMP FOR EDC AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM
6
1.82.7/j
13
1.82.7/j
1.82.7/k
7
5
1.82.7/a
3
13
9
16
15
13
12
1.82.7/n
12
14
12
10
14
4
1.82.7/l
13
1.82.7/c
1.82.7/c
2
8
12
11
1
1.82.7/c
1.82.7/c

Артикул

Название

Примечание

Количество

1

87311423

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

47129476

THREADED TIE-ROD,M8

ROD

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

2шт.

5

87546169R

REMAN-HYD VALVE

2шт.

5

87546169C

CORE-VALVE HYD

Return Number

2шт.

6

5191704

CHECK VALVE

Incl.16

1шт.

7

47123063

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

7

87381964

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

8

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

8

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

87546170

CONTROL VALVE

1шт.

10

84175671R

REMAN-HYD VALVE

1шт.

10

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

1шт.

11

87730706R

REMAN-HYD VALVE

1шт.

11

87730706C

CORE-VALVE HYD

Return Number

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

14

87328572

HYD VALVE SECTION

2шт.

14

87328572R

REMAN-HYD VALVE

2шт.

14

87328572C

CORE-VALVE HYD

Return Number

2шт.

15

47123065

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

15

87381965

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

16

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

Выбрано товаров: 28
