Запчасти Case IH MXU115 (1.82.7/43[02]) - (VAR.009) 4 REMOTES(2NC+2CONFIG) FOR CCLS PUMP FOR MDC AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

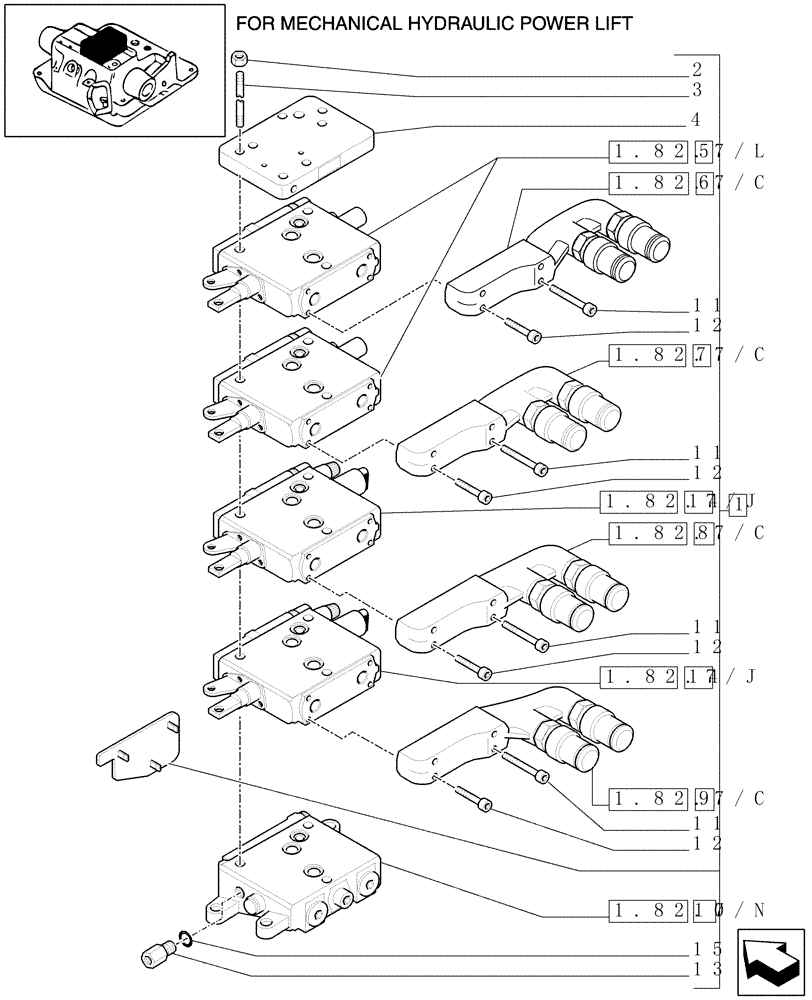

Схема запчастей Case IH MXU115 - (1.82.7/43[02]) - (VAR.009) 4 REMOTES(2NC+2CONFIG) FOR CCLS PUMP FOR MDC AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM
7
3
1
4
6
10
12
14
15
12
1.82.7/n
1.82.7/j
12
12
1.82.7/c
1.82.7/l
1.82.7/c
11
11
1.82.7/j
8
9
14
1.82.7/c
5
13
11
11
2
1.82.7/c

Артикул

Название

Примечание

Количество

1

87311425

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

47123183

STUD,M8

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

2шт.

87546169R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 all (7/03-)

2шт.

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

47123065

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381965

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47123063

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

7

87381964

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

8

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

8

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

87730706

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 ALL CASE IH TRACTOR (7/03-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

12

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

13

5191704

CHECK VALVE

Incl. 15

1шт.

14

87328572

HYD VALVE SECTION

2шт.

87328572R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, ALL (7/03-)

2шт.

87328572C

CORE-VALVE HYD

Return Number

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

Выбрано товаров: 25
