Запчасти Case IH MXU115 (1.82.7/42[02]) - (VAR.006) 4 REMOTES(2NC+2CONFIG) FOR FIXED DISPLACEMENT PUMP FOR EDC AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

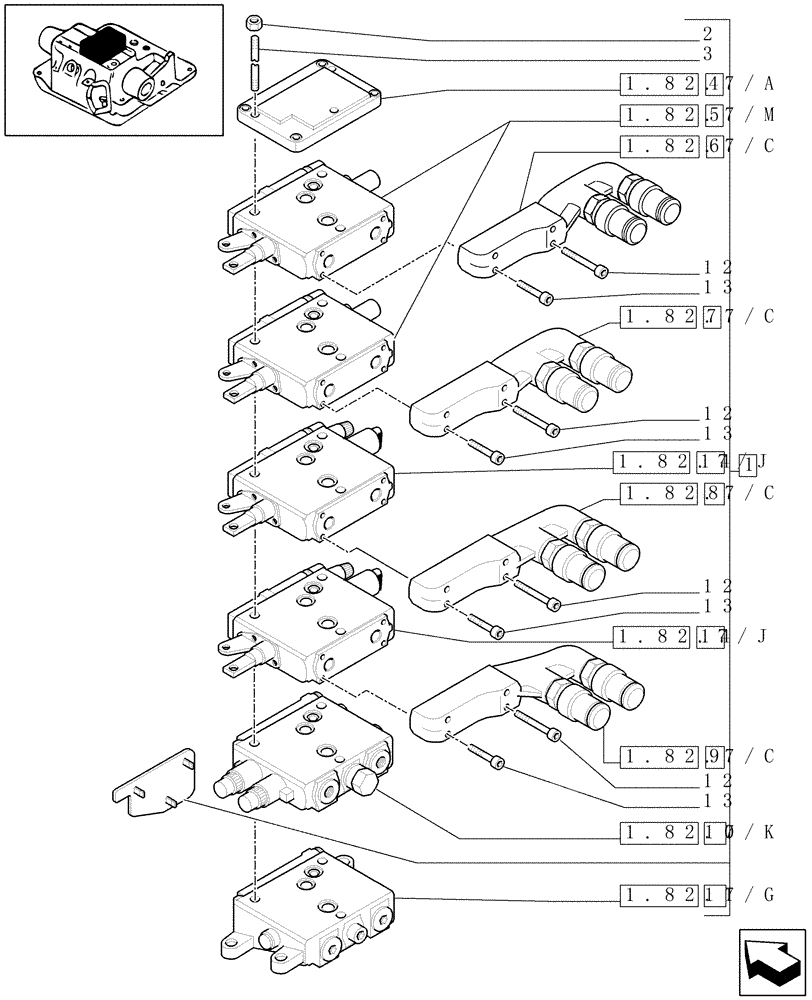

Схема запчастей Case IH MXU115 - (1.82.7/42[02]) - (VAR.006) 4 REMOTES(2NC+2CONFIG) FOR FIXED DISPLACEMENT PUMP FOR EDC AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM
12
10
13
4
1.82.7/m
12
14
1.82.7/g
1.82.7/c
7
1.82.7/k
1.82.7/c
14
2
13
11
12
3
1.82.7/j
13
12
5
1.82.7/a
1.82.7/j
1.82.7/c
6
9
1
8
1.82.7/c
13

Артикул

Название

Примечание

Количество

1

87311386

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

47129476

THREADED TIE-ROD,M8

ROD

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

2шт.

87546169R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 all (7/03-)

2шт.

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

47123065

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381965

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47123063

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

7

87381964

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

8

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

8

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

87546170

CONTROL VALVE

1шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 all CASE IH TRACTOR (7/03-) Reman for New P/N 87546170

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

5192186

DISTRIBUTOR

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

14

87328572

HYD VALVE SECTION

2шт.

87328572R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, ALL (7/03-)

2шт.

87328572C

CORE-VALVE HYD

Return Number

1шт.

Выбрано товаров: 24
