Запчасти Case IH MXU115 (1.82.7/41[02]) - (VAR.005) 4 REMOTES(2NC+2CONFIG) FOR FIXED DISPLACEMENT PUMP FOR MDC AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

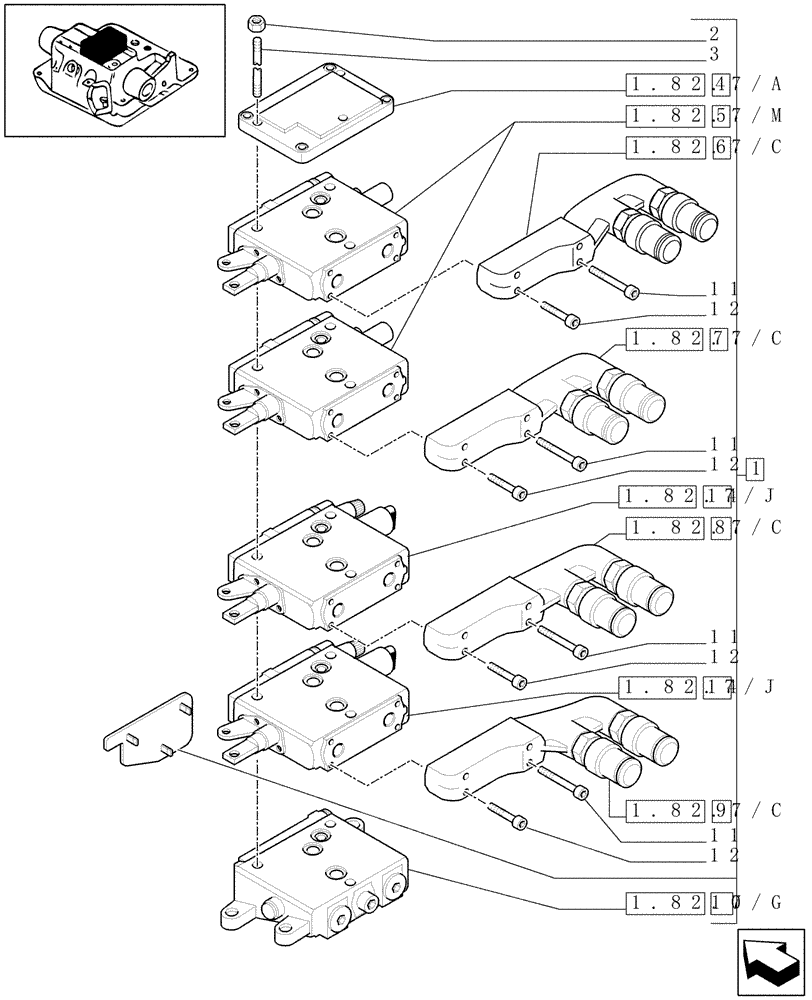

Схема запчастей Case IH MXU115 - (1.82.7/41[02]) - (VAR.005) 4 REMOTES(2NC+2CONFIG) FOR FIXED DISPLACEMENT PUMP FOR MDC AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM
11
4
1.82.7/j
11
11
1.82.7/c
12
12
5
1.82.7/c
2
3
9
11
1.82.7/c
1.82.7/m
1.82.7/a
1.82.7/c
1
14
10
12
14
12
1.82.7/g
8
7
6
1.82.7/j

Артикул

Название

Примечание

Количество

1

87311382

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

47123183

STUD,M8

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

2шт.

87546169R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 all (7/03-)

2шт.

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

47123065

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381965

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47123063

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

7

87381964

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

8

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

8

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

5192186

DISTRIBUTOR

1шт.

11

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

13

5199101

COVER

1шт.

14

87328572

HYD VALVE SECTION

2шт.

87328572R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, ALL (7/03-)

2шт.

87328572C

CORE-VALVE HYD

Return Number

1шт.

Выбрано товаров: 22
