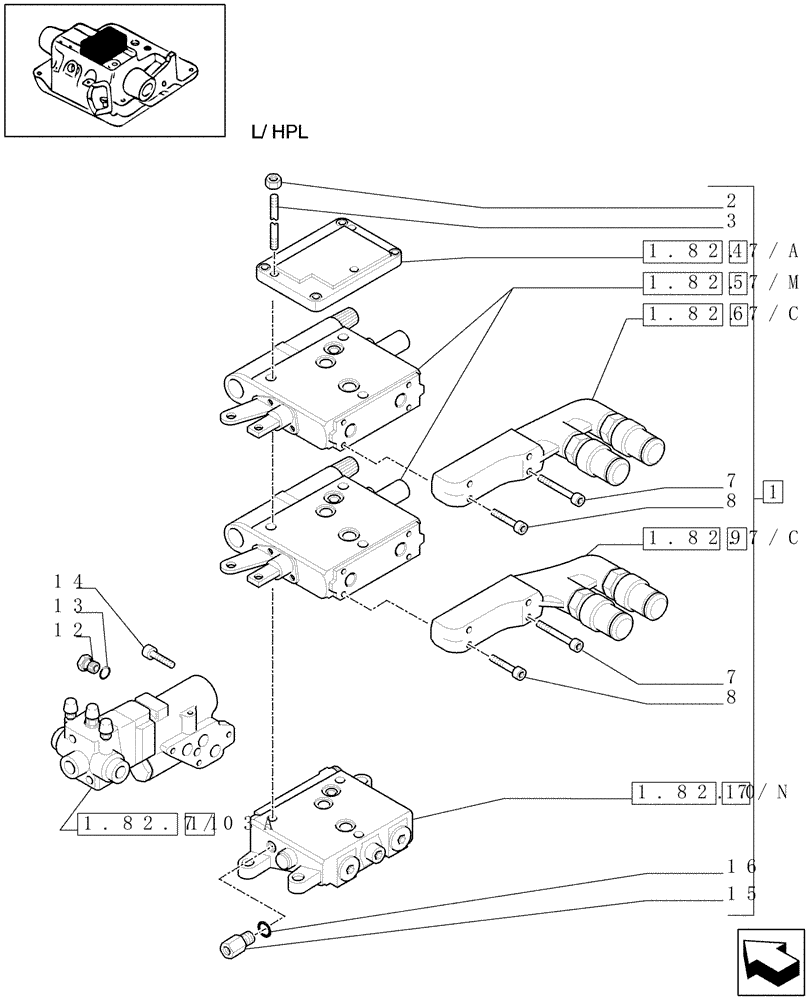

Запчасти Case IH MXU115 (1.82.7/37[05]) - (VAR.831-831/1) CCLS WITH 2 MECHANICAL CONTROL VALVE - CONTROL VALVE & RELATED PARTS - D5504 (07) - HYDRAULIC SYSTEM

1

87546163

CONTROL VALVE

ASSY

1шт.

2

5195169

NUT,M8

3шт.

3

5195170

BOLT

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

2шт.

5

87546169R

REMAN-HYD VALVE

2шт.

5

87546169C

CORE-VALVE HYD

Return Number

2шт.

6

87381963

QUICK MALE COUPLING

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

87730706

CONTROL VALVE

1шт.

10

87730706R

REMAN-HYD VALVE

1шт.

10

87730706C

CORE-VALVE HYD

Return Number

1шт.

11

5192069

BRAKE VALVE

1шт.

12

47131496

PLUG,Hex, M12 x 1

M12X1

1шт.

13

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

14

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

14

14359424

SCREW,M8 x 75mm, Cl 8.8

M8X75

2шт.

15

5191704

CHECK VALVE

1шт.

16

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
