Запчасти Case IH MXU115 (1.82.7/37[02]) - (VAR.831-831/1) CCLS WITH 2 MECHANICAL CONTROL VALVE - CONTROL VALVE & RELATED PARTS - C5504 (07) - HYDRAULIC SYSTEM

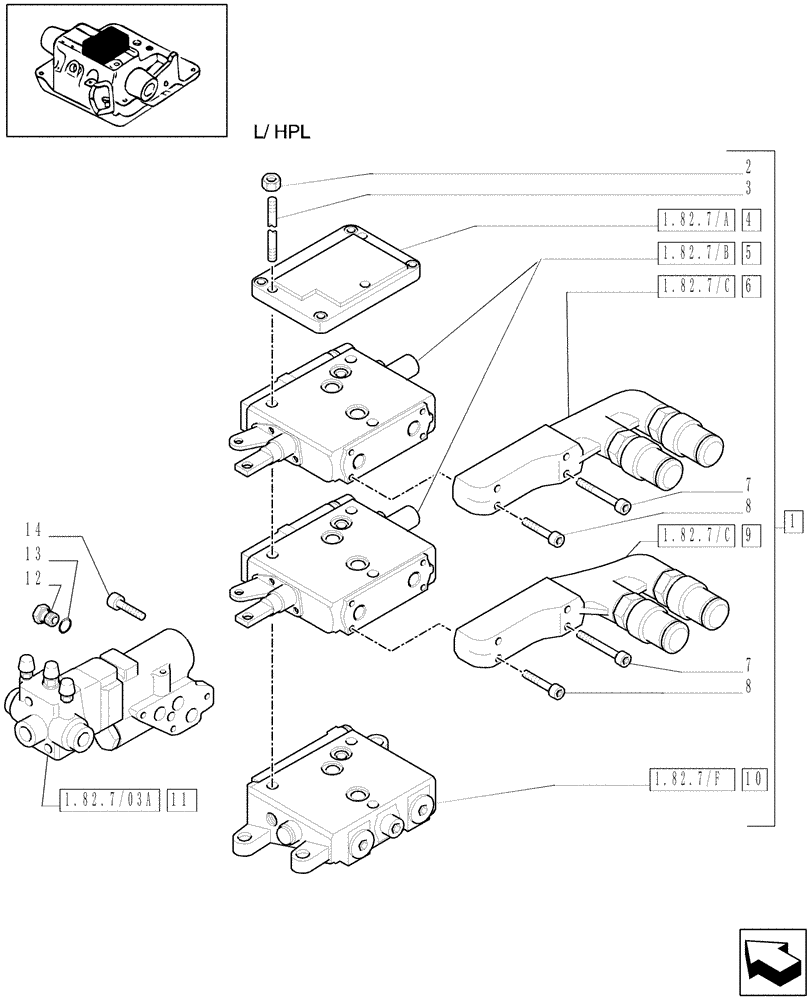

Схема запчастей Case IH MXU115 - (1.82.7/37[02]) - (VAR.831-831/1) CCLS WITH 2 MECHANICAL CONTROL VALVE - CONTROL VALVE & RELATED PARTS - C5504 (07) - HYDRAULIC SYSTEM
1.82.7/a
4
8
1.82.7/c
5
1.82.7/03a
1.82.7/b
2
12
3
13
11
1.82.7/c
7
6
1.82.7/f
8
10
1
9
7
14

Артикул

Название

Примечание

Количество

1

47124672

CONTROL VALVE

ASSY

1шт.

2

16100821

NUT,M8, Cl 10

3шт.

3

5195170

BOLT

3шт.

4

5192188

BODY

1шт.

5

5199099

VALVE

2шт.

6

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

5192184

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 ALL CASE IH TRACTOR (7/03-), REMAN FOR NEW P/N 87730706

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

11

5192069

BRAKE VALVE

1шт.

12

47131496

PLUG,Hex, M12 x 1

M12X1

1шт.

13

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

14

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

14

14359424

SCREW,M8 x 75mm, Cl 8.8

M8X75

2шт.

Выбрано товаров: 19
