Запчасти Case IH MXU115 (1.82.7/36[02]) - (VAR.719) 2 CONTROL VALVES - CONTROL VALVE AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM

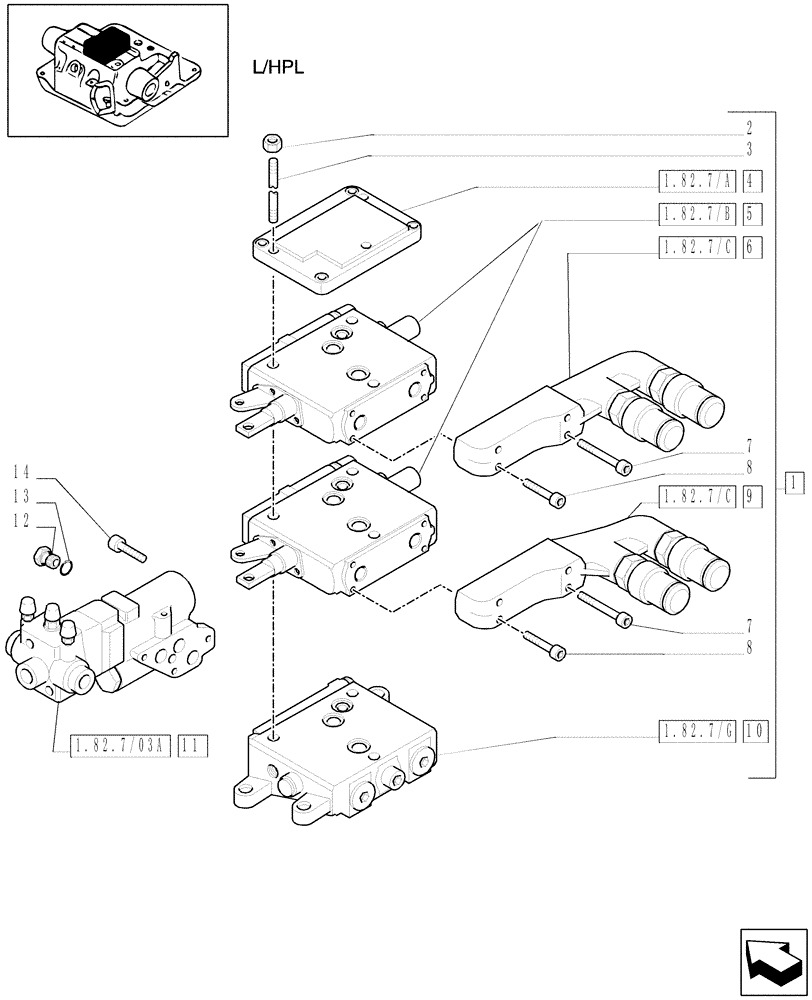

Схема запчастей Case IH MXU115 - (1.82.7/36[02]) - (VAR.719) 2 CONTROL VALVES - CONTROL VALVE AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM
2
8
11
9
1
12
7
3
4
14
7
6
1.82.7/a
13
8
1.82.7/c
1.82.7/c
10
1.82.7/03a
1.82.7/g
5
1.82.7/b

Артикул

Название

Примечание

Количество

1

47124671

CONTROL VALVE

Assy., Open Center, L/HPL

1шт.

2

16100821

NUT,M8, Cl 10

3шт.

3

5195170

BOLT

3шт.

4

5192188

BODY

1шт.

5

5199099

VALVE

Directional

2шт.

6

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

5192186

DISTRIBUTOR

1шт.

11

5192069

BRAKE VALVE

1шт.

12

47131496

PLUG,Hex, M12 x 1

M12X1

1шт.

13

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

14

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

14

14359424

SCREW,M8 x 75mm, Cl 8.8

M8X75

2шт.

Выбрано товаров: 17
