Запчасти Case IH MXU115 (1.82.7/32[01]) - (VAR.704-942) 2 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER (NAR) - CONTROL VALVE AND PIPES (07) - HYDRAULIC SYSTEM

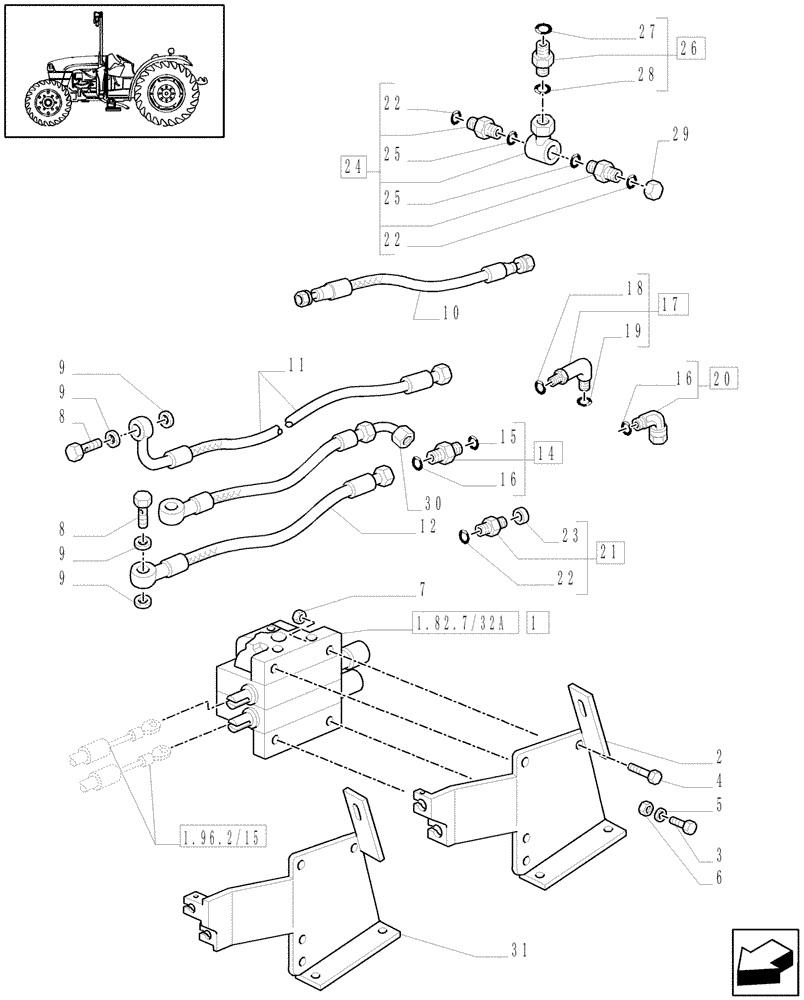

Схема запчастей Case IH MXU115 - (1.82.7/32[01]) - (VAR.704-942) 2 CONTROL VALVES WITH MECHANICAL JOYSTICK FOR LOADER (NAR) - CONTROL VALVE AND PIPES (07) - HYDRAULIC SYSTEM
3
9
11
5
22
31
9
25
4
25
2
8
10
29
16
27
15
6
1.82.7/32a
14
22
23
12
21
24
18
1
17
16
20
9
7
30
9
8
19
26
1.96.2/15
28
22

Артикул

Название

Примечание

Количество

1

82019733

VALVE SECTION

1шт.

2

82031012

BRACKET

, Serial Range: -C5363

1шт.

3

14306574

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 10.9, Full Thd

, Serial Range: -C4871

3шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

, Start Serial: D4871

3шт.

4

14420371

SCREW,M10 x 35mm, Cl 12.9

M10X35

2шт.

4

14420574

HEX SOC SCREW,M10 x 45mm, Cl 12.9

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

7

11701721

NUT,M10, Cl 10

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

M12X1.25X40

2шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

4шт.

10

82031017

HYD TUBE

Load Sense, MM.1880, Serial Range: -C4871

1шт.

10

82036909

FLEXIBLE HOSE,6.35mm ID x 1880mm L, SAE 100R2

Load Sense, MM.1880, Start Serial: D4871

1шт.

11

82034041

FLEXIBLE HOSE,15.88mm ID x 750mm L, SAE 100R2

Return, MM.680

1шт.

12

82034045

FLEXIBLE HOSE,1655.00 mm, SAE J517-100R1

Feed, Serial Range: -C5230

1шт.

13

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

3шт.

14

82034043

HYD CONNECTOR

13/16"-16 UN-2A/M22X1.5

1шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

16

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

2шт.

17

82034042

ELBOW

1-3/16"-12 UN-2A/M27X2

1шт.

18

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

19

14438185

O-RING,24mm ID x 3mm

1шт.

20

82034044

ELBOW

13/16"-16

1шт.

21

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

9/16"-18 UN-2A/M10 x 1

1шт.

22

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

23

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

24

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

, Serial Range: -C4871

1шт.

25

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

, Start Serial: D4871

2шт.

26

5185045

HYD CONNECTOR

9/16"-18, M12X1,5

1шт.

27

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

28

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

29

5189973

PLUG

9/16"-18, Serial Range: -C4871

1шт.

30

87308082

FLEXIBLE HOSE,15.88mm ID x 2000mm L, SAE 100R2

, Start Serial: D5230

1шт.

31

87568641

BRACKET

, Start Serial: D5363

1шт.

Выбрано товаров: 34
