Запчасти Case IH MXU115 (1.82.7/29[02]) - (VAR.377) 2 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) - VALVE PIPES (07) - HYDRAULIC SYSTEM

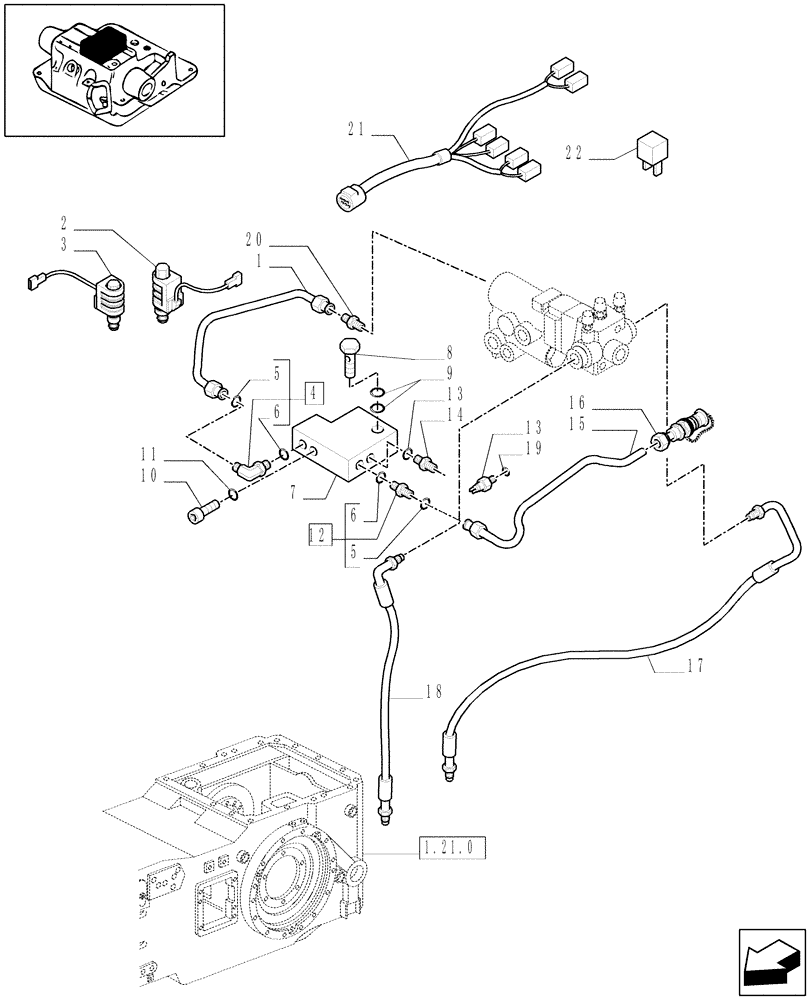

Схема запчастей Case IH MXU115 - (1.82.7/29[02]) - (VAR.377) 2 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) - VALVE PIPES (07) - HYDRAULIC SYSTEM
1.21.0
6
11
19
9
18
20
5
5
21
12
6
8
15
7
14
13
2
4
1
13
22
10
16
17
3

Артикул

Название

Примечание

Количество

1

47124762

HYD TUBE

13/16"-16

1шт.

2

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

3

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

4

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

13/16"-16, M18X1.5

1шт.

5

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

2шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

7

5196170

BLOCK

1шт.

8

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

9

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

M18X1.5

2шт.

10

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

11

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

12

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

1шт.

13

82033989

SWITCH ASSY

Pressure, Trailer Brake

1шт.

14

82030730

SWITCH ASSY

Oil

1шт.

15

47126091

HYD TUBE

1шт.

16

44015354

QUICK MALE COUPLING

1шт.

17

5196663

FLEXIBLE HOSE

RH

1шт.

18

5196661

FLEXIBLE HOSE,4.75mm ID x 350mm L

LH

1шт.

19

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

2шт.

20

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

21

82038893

WIRE HARNESS

TRAILER BRAKES

1шт.

22

82023238

RELAY,12V, 20A

OMRON

2шт.

Выбрано товаров: 22
