Запчасти Case IH MXU115 (1.82.7/28[05]) - (VAR.376) 4 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE AND ASSOCIATED PARTS - D5504 (07) - HYDRAULIC SYSTEM

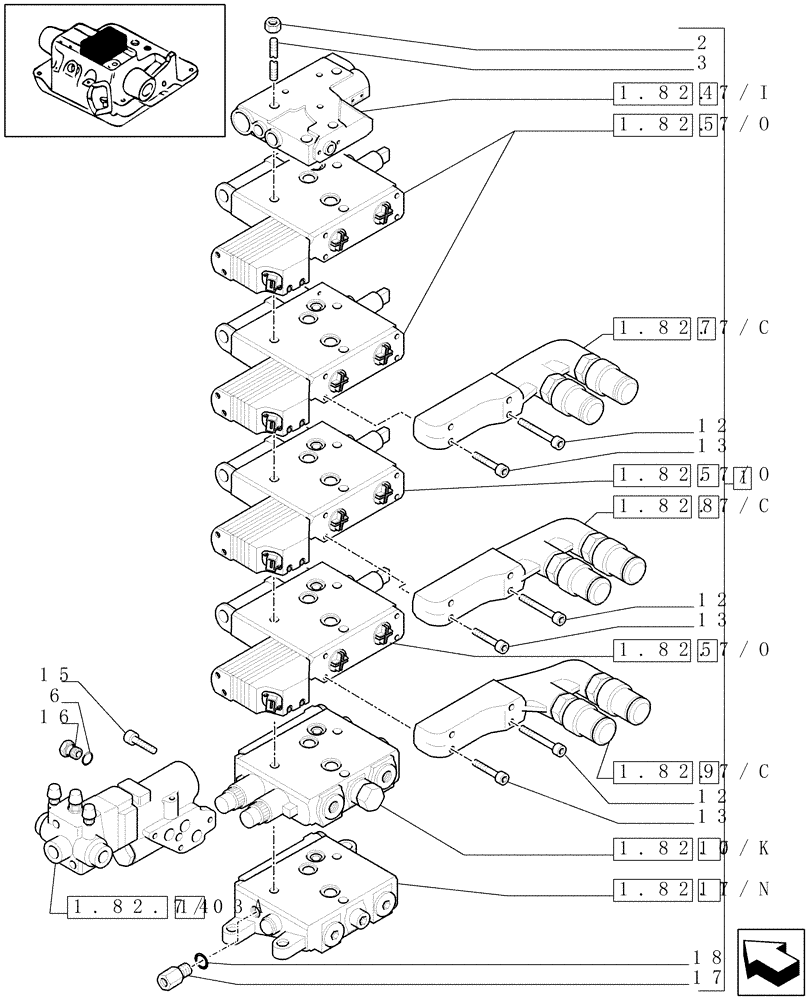

Схема запчастей Case IH MXU115 - (1.82.7/28[05]) - (VAR.376) 4 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE AND ASSOCIATED PARTS - D5504 (07) - HYDRAULIC SYSTEM
7
6
1.82.7/i
1.82.7/c
1.82.7/03a
14
18
1.82.7/o
13
1.82.7/n
12
4
13
2
8
12
9
17
5
12
1.82.7/c
1
15
13
1.82.7/k
16
11
1.82.7/c
3
1.82.7/o
10
5
1.82.7/o
5

Артикул

Название

Примечание

Количество

1

87546172

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

47129473

THREADED TIE-ROD

3шт.

4

47123078

HYDRAULIC VALVE

1шт.

5

84125295

VALVE SECTION,Electronic Control

4шт.

84125295R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all (7/03-)

4шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

6

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

87546170

CONTROL VALVE

1шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all CASE IH TRACTOR (7/03-) Reman for New P/N 87546170

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 ALL CASE IH TRACTOR (7/03-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

14

5192069

BRAKE VALVE

1шт.

15

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

15

14359424

SCREW,M8 x 75mm, Cl 8.8

M8X75

2шт.

16

47131496

PLUG,Hex, M12 x 1

M12X1

1шт.

17

5191704

CHECK VALVE

Incl. 18

1шт.

18

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

Выбрано товаров: 25
