(1.82.7/28[01]) - (VAR.376) 4 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE AND ASSOCIATED PARTS - C5504

Запчасти Case IH MXU115 (1.82.7/28[01]) - (VAR.376) 4 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM

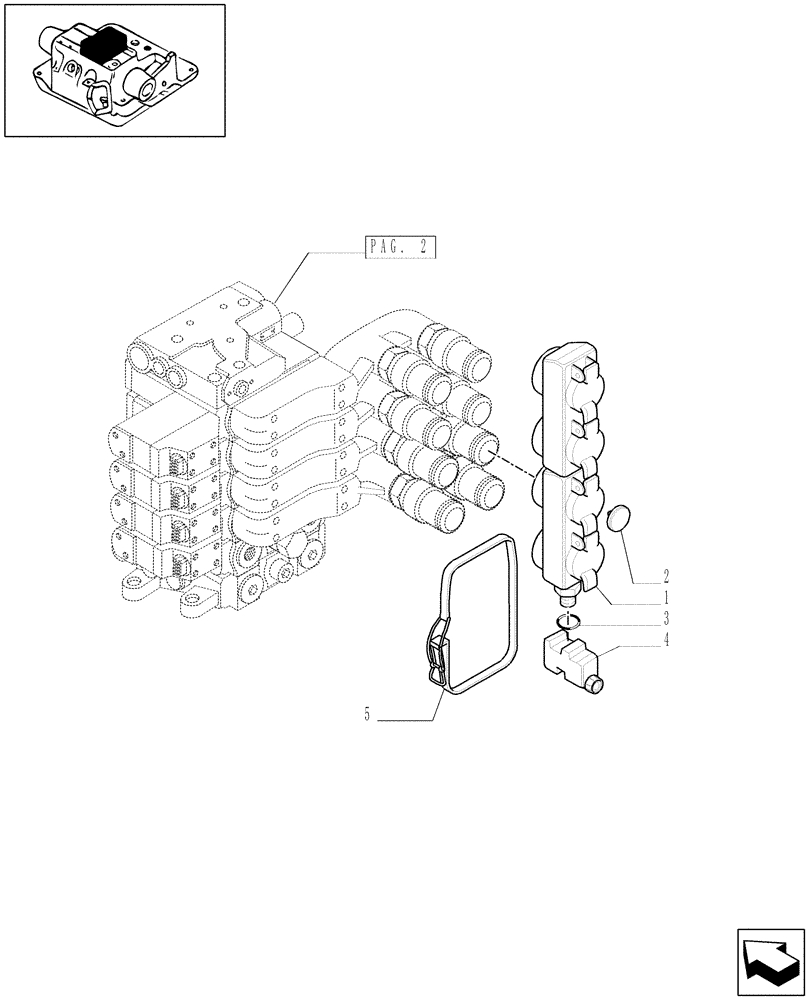

Схема запчастей Case IH MXU115 - (1.82.7/28[01]) - (VAR.376) 4 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM
4
pag. 2
2
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82035719

DUST CAP

2шт.

2

82029895

DISC,20mm D, Black

Black

8шт.

3

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

4

82031972

RESERVOIR, HYDRAULIC

100mm wide

1шт.

5

82031973

SPRING CLIP

1шт.

Выбрано товаров: 5
