(1.82.7/27[02]) - (VAR.375) 2 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE - VALVE PIPES

Запчасти Case IH MXU115 (1.82.7/27[02]) - (VAR.375) 2 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE - VALVE PIPES (07) - HYDRAULIC SYSTEM

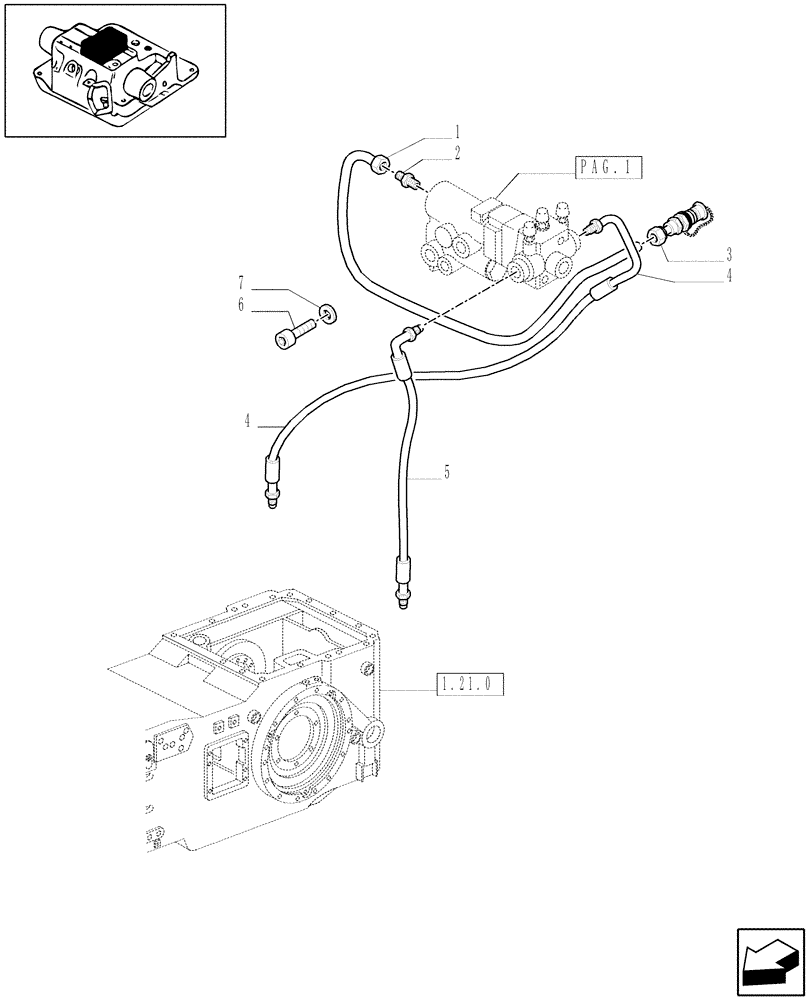

Схема запчастей Case IH MXU115 - (1.82.7/27[02]) - (VAR.375) 2 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE - VALVE PIPES (07) - HYDRAULIC SYSTEM
4
2
pag.1
1
5
3
7
6
4
1.21.0
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47134002

HYD TUBE

1шт.

2

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

3

44015354

QUICK MALE COUPLING

1шт.

4

5196663

FLEXIBLE HOSE

RH

1шт.

5

5196661

FLEXIBLE HOSE,4.75mm ID x 350mm L

LH

1шт.

6

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

7

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 7
