Запчасти Case IH MXU115 (1.82.7/27[01]) - (VAR.375) 2 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM

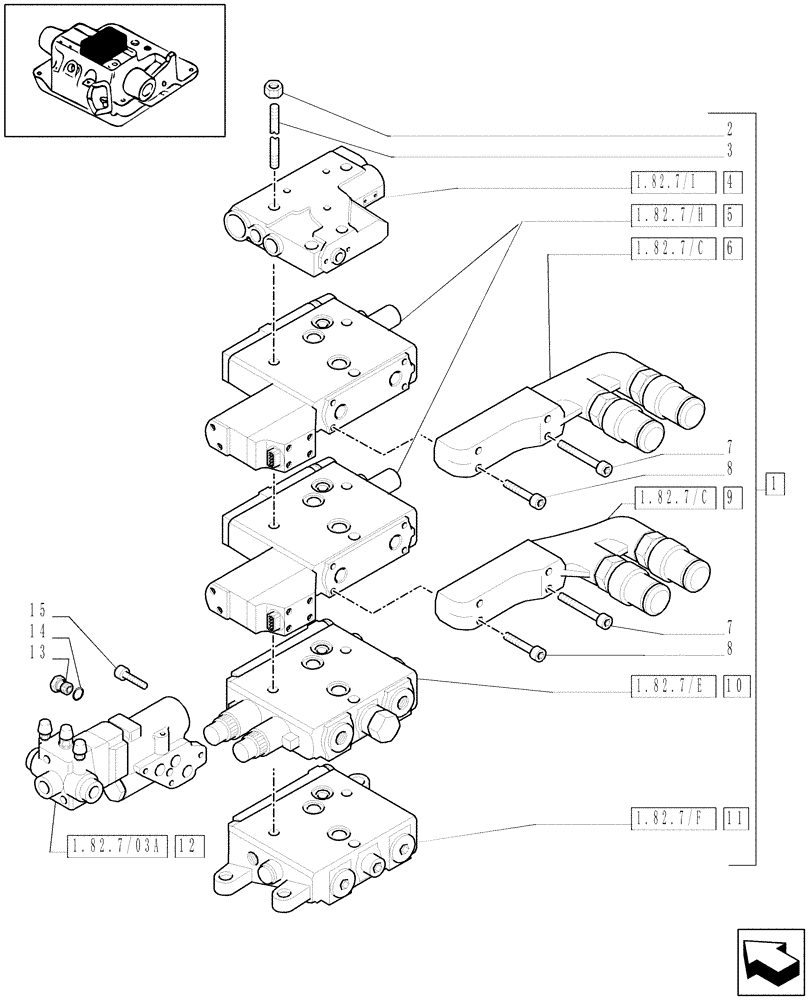

Схема запчастей Case IH MXU115 - (1.82.7/27[01]) - (VAR.375) 2 CCLS (EDC) ELECTRONIC CONTROL VALVES WITH TRAILER BRAKE VALVE AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM
14
1.82.7/i
7
8
12
15
9
2
11
10
1.82.7/03a
5
7
4
1.82.7/c
8
1.82.7/c
1.82.7/h
1.82.7/f
3
6
13
1.82.7/e
1

Артикул

Название

Примечание

Количество

1

47124673

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

5199619

TIE-ROD

3шт.

4

47123078

HYDRAULIC VALVE

1шт.

5

471230179

CONTROL VALVE

2шт.

6

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

5192187

CONTROL VALVE

1шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all CASE IH TRACTOR (7/03-)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

5192184

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 ALL CASE IH TRACTOR (7/03-), REMAN FOR NEW P/N 87730706

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

5192069

BRAKE VALVE

1шт.

13

47131496

PLUG,Hex, M12 x 1

M12X1

1шт.

14

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

15

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

15

14359424

SCREW,M8 x 75mm, Cl 8.8

M8X75

2шт.

Выбрано товаров: 22
