Запчасти Case IH MXU115 (1.82.7/26[04]) - (VAR.363) 4 CCLS (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS - D5504 (07) - HYDRAULIC SYSTEM

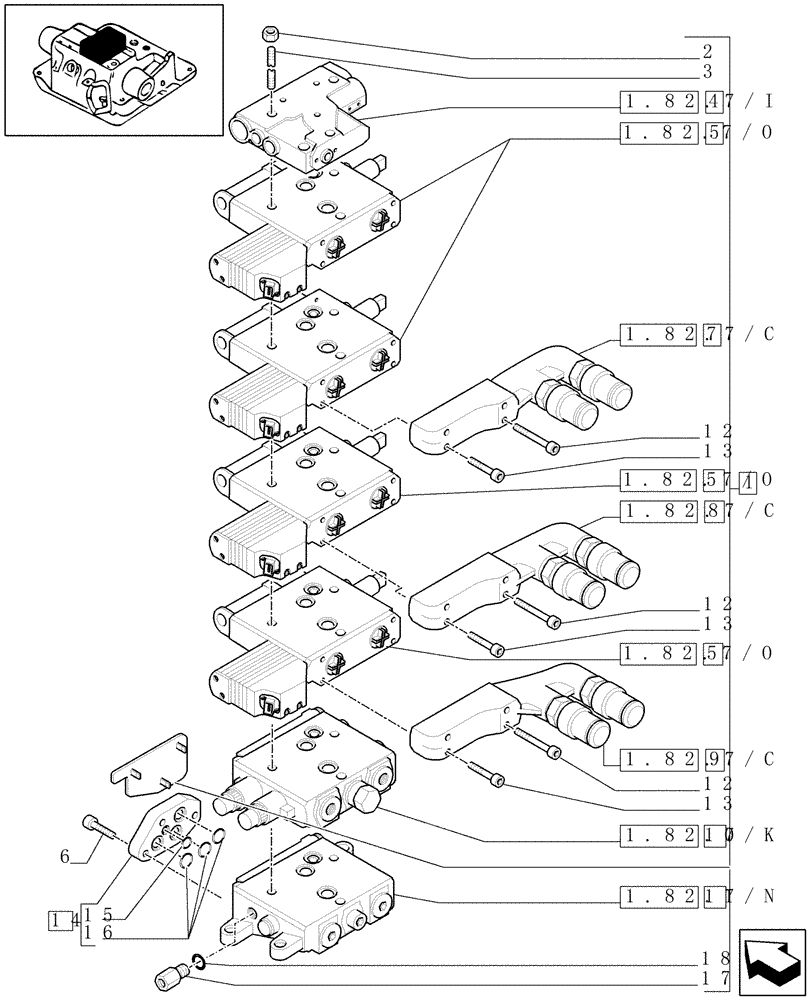

Схема запчастей Case IH MXU115 - (1.82.7/26[04]) - (VAR.363) 4 CCLS (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS - D5504 (07) - HYDRAULIC SYSTEM
12
1.82.7/n
14
1.82.7/k
10
1
12
8
3
1.82.7/o
17
1.82.7/o
1.82.7/o
1.82.7/c
9
6
2
16
11
18
1.82.7/i
4
15
7
13
1.82.7/c
5
5
1.82.7/c
12
13
13
5

Артикул

Название

Примечание

Количество

1

87546172

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

47129473

THREADED TIE-ROD

3шт.

4

47123078

HYDRAULIC VALVE

1шт.

5

84125295

VALVE SECTION,Electronic Control

4шт.

84125295R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all (7/03-)

4шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

6

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

7

87381964

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

8

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

87546170

CONTROL VALVE

1шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all CASE IH TRACTOR (7/03-) Reman for New P/N 87546170

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 ALL CASE IH TRACTOR (7/03-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

14

5199101

COVER

1шт.

15

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

16

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

17

5191704

CHECK VALVE

Incl. 18

1шт.

18

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

Выбрано товаров: 24
