Запчасти Case IH MXU115 (1.82.7/26[02]) - (VAR.363) 4 CCLS (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM

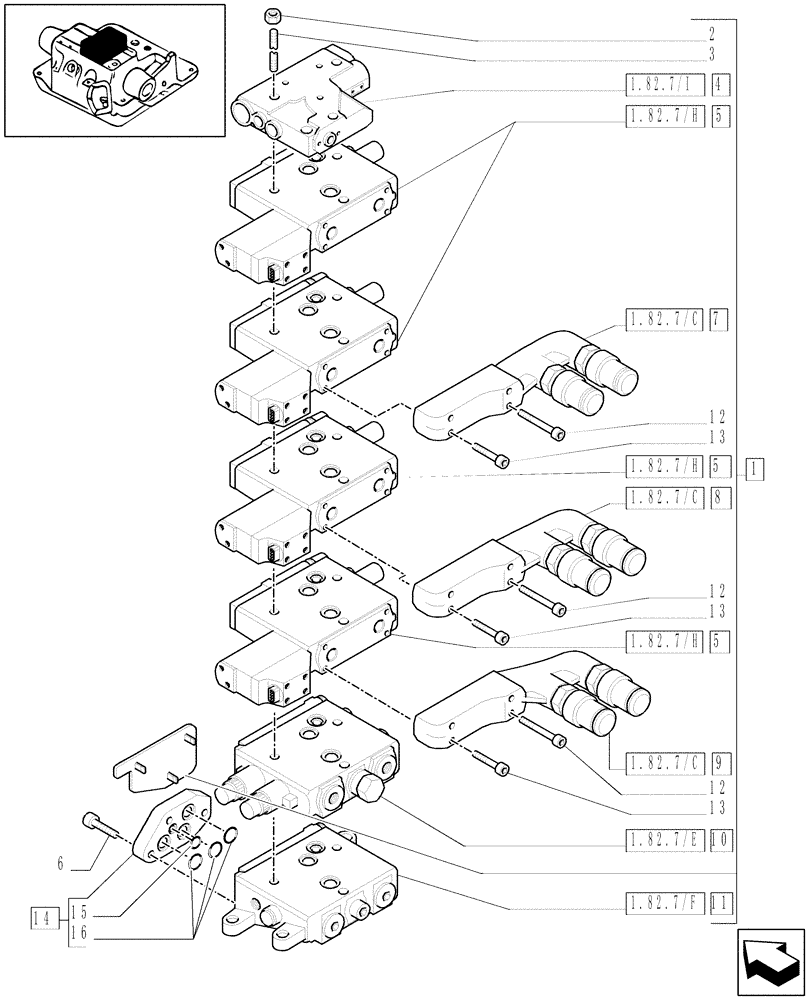

Схема запчастей Case IH MXU115 - (1.82.7/26[02]) - (VAR.363) 4 CCLS (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM
7
13
12
1.82.7/f
5
12
1.82.7/c
5
1.82.7/i
9
10
15
1.82.7/h
13
13
6
14
4
2
8
3
12
16
1.82.7/e
5
1.82.7/h
1.82.7/c
1.82.7/h
1.82.7/c
11
1

Артикул

Название

Примечание

Количество

1

47135751

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

47129473

THREADED TIE-ROD

3шт.

4

47123078

HYDRAULIC VALVE

1шт.

5

471230179

CONTROL VALVE

4шт.

6

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

7

47123063

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

7

87381964

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

8

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

8

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

5192187

CONTROL VALVE

1шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all CASE IH TRACTOR (7/03-) Reman for New P/N 5192187

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

5192184

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 ALL CASE IH TRACTOR (7/03-), REMAN FOR NEW P/N 87730706

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

14

5199101

COVER

1шт.

15

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

16

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

Выбрано товаров: 23
