Запчасти Case IH MXU115 (1.82.7/25[02]) - (VAR.361) 2 CCLS (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS - D5504 (07) - HYDRAULIC SYSTEM

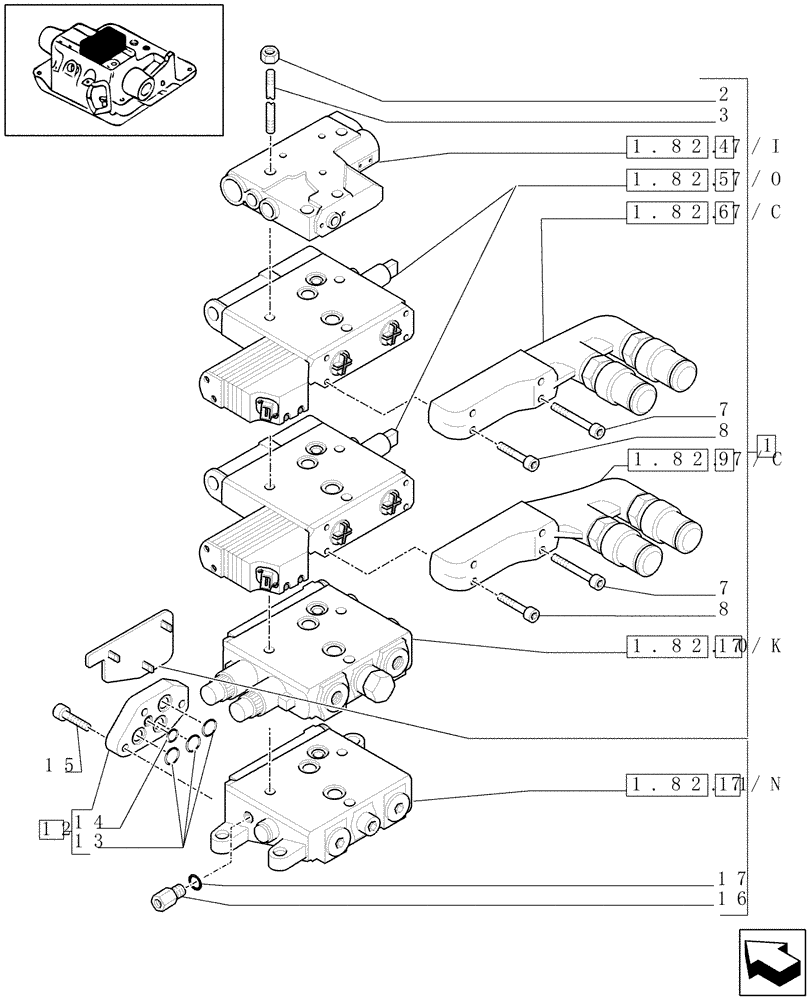

Схема запчастей Case IH MXU115 - (1.82.7/25[02]) - (VAR.361) 2 CCLS (EDC) ELECTRONIC CONTROL VALVES AND ASSOCIATED PARTS - D5504 (07) - HYDRAULIC SYSTEM
11
8
6
1.82.7/c
1.82.7/i
1.82.7/n
7
2
1.82.7/c
1
17
16
8
4
12
13
3
1.82.7/k
5
15
1.82.7/o
14
10
7
9

Артикул

Название

Примечание

Количество

1

87546171

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

5199619

TIE-ROD

3шт.

4

47123078

HYDRAULIC VALVE

1шт.

5

84125295

VALVE SECTION,Electronic Control

2шт.

84125295R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all (7/03-)

2шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

6

87381963

QUICK MALE COUPLING

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

87545170

DECAL

1шт.

11

87730706

CONTROL VALVE

1шт.

12

5199101

COVER

1шт.

13

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

14

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

15

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

16

5191704

CHECK VALVE

Incl. 17

1шт.

17

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

Выбрано товаров: 19
