Запчасти Case IH MXU115 (1.82.7/21[05]) - (VAR.354) 2 (EDC) CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS - D5504 (07) - HYDRAULIC SYSTEM

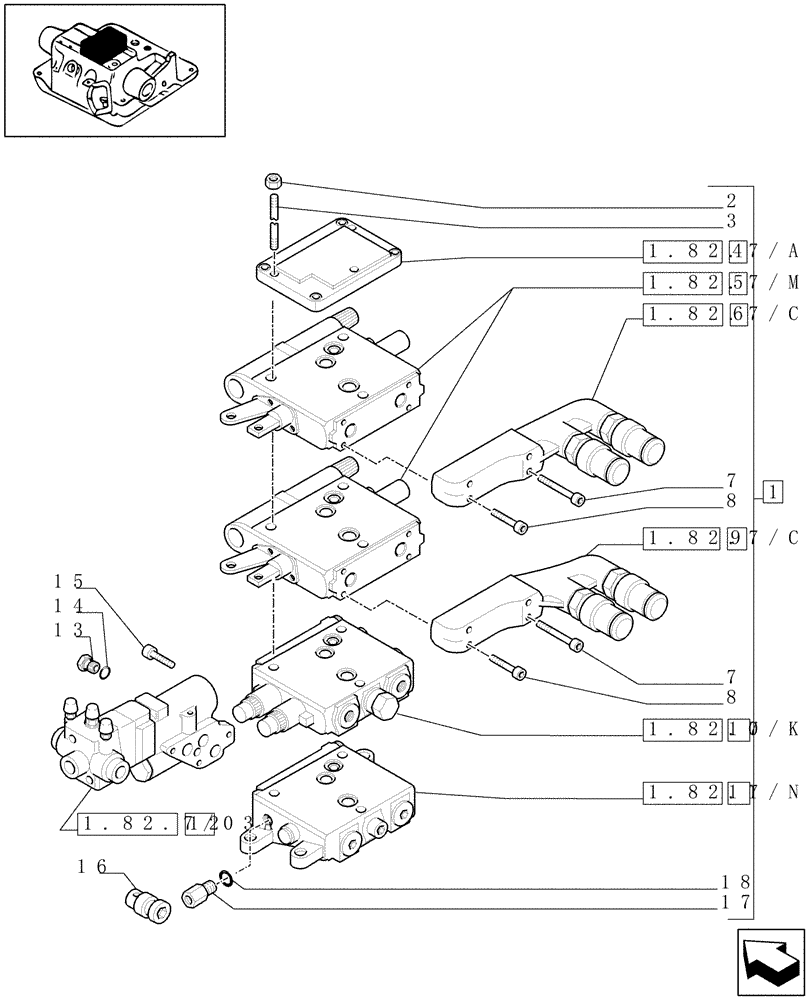

Схема запчастей Case IH MXU115 - (1.82.7/21[05]) - (VAR.354) 2 (EDC) CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS - D5504 (07) - HYDRAULIC SYSTEM
11
4
1.82.7/c
10
9
1.82.7/m
7
8
1
5
1.82.7/n
1.82.7/c
2
16
1.82.7/k
8
1.82.7/a
7
15
13
3
6
18
14
12
1.82.7/03a
17

Артикул

Название

Примечание

Количество

1

87546165

CONTROL VALVE

ASSY

1шт.

2

5195169

NUT,M8

3шт.

3

5195168

TIE-ROD,M8

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

2шт.

87546169R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 all (7/03-)

2шт.

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

87381963

QUICK MALE COUPLING

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

87546170

CONTROL VALVE

2шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 all CASE IH TRACTOR (7/03-) Reman for New P/N 87546170

2шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 ALL CASE IH TRACTOR (7/03-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

5192069

BRAKE VALVE

1шт.

13

47131496

PLUG,Hex, M12 x 1

M12X1

1шт.

14

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

15

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

15

14559424

SCREW

M8X75

2шт.

16

47131575

VALVE PRESSURE RELIE

1шт.

17

5191704

CHECK VALVE

Incl. 18

1шт.

18

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

Выбрано товаров: 25
