Запчасти Case IH MXU115 (1.82.7/20[02]) - (VAR.353/1) 4 CCLS CONTROL VALVES WITH TRAILER BRAKE VALVE AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM

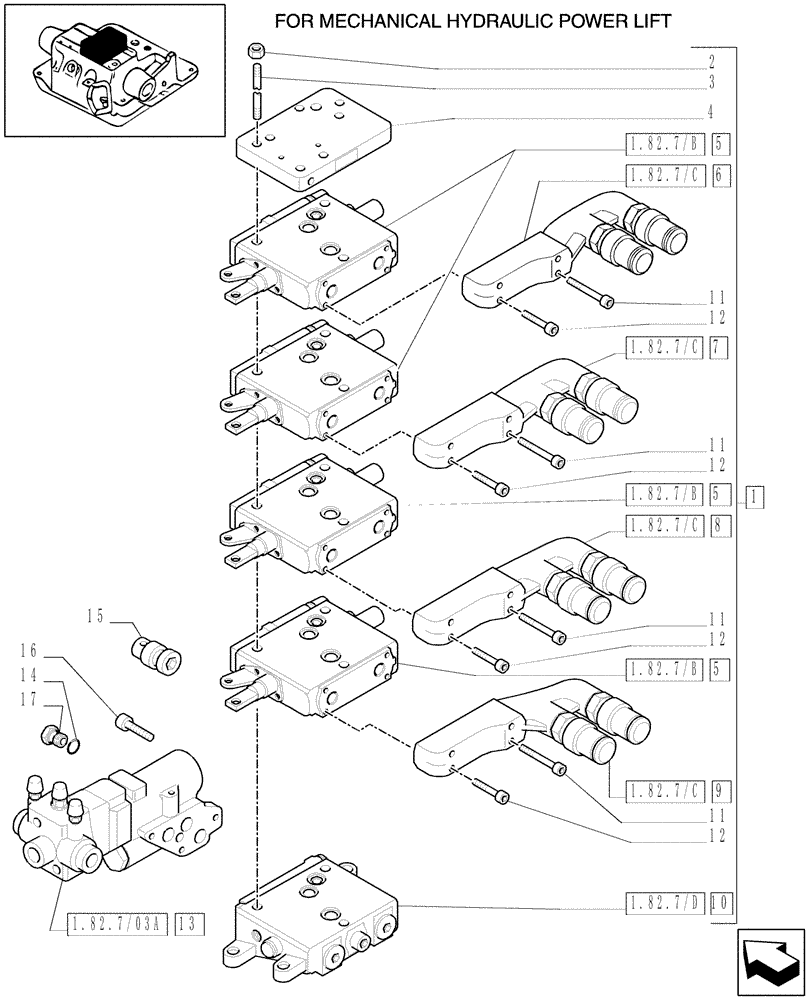

Схема запчастей Case IH MXU115 - (1.82.7/20[02]) - (VAR.353/1) 4 CCLS CONTROL VALVES WITH TRAILER BRAKE VALVE AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM
11
9
11
11
4
1.82.7/c
3
1.82.7/c
5
1.82.7/b
12
6
12
12
14
11
1
2
5
5
1.82.7/b
1.82.7/d
17
12
8
15
13
10
1.82.7/b
16
7
1.82.7/03a
1.82.7/c
1.82.7/c

Артикул

Название

Примечание

Количество

1

47124667

REMOTE CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

47123183

STUD,M8

3шт.

4

5199100

PLATE

1шт.

5

5199099

VALVE

4шт.

6

47123065

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381965

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47123063

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

7

87381964

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

8

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

8

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

5192184

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 ALL CASE IH TRACTOR (7/03-), REMAN FOR NEW P/N 87730706

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

12

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

13

5192069

BRAKE VALVE

1шт.

14

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

15

47131575

VALVE PRESSURE RELIE

1шт.

16

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

16

14359424

SCREW,M8 x 75mm, Cl 8.8

M8X75

2шт.

Выбрано товаров: 23
