Запчасти Case IH MXU115 (1.82.7/15[02]) - (VAR.349) 2 CONTROL VALVES CCLS (EDC) AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM

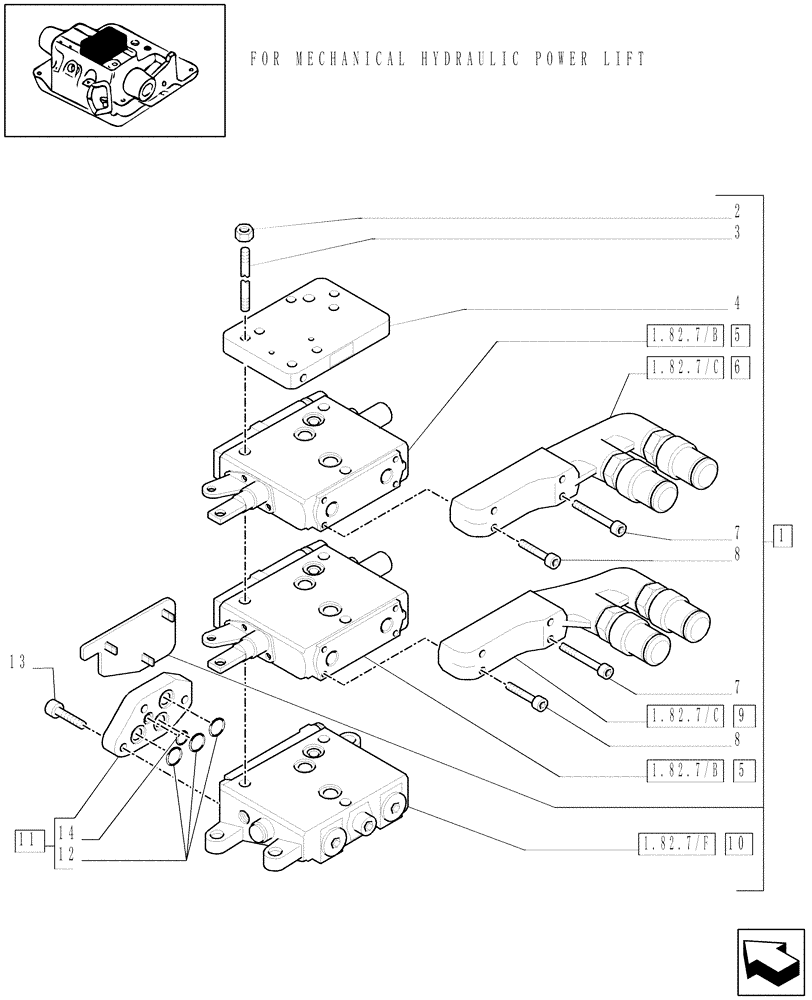

Схема запчастей Case IH MXU115 - (1.82.7/15[02]) - (VAR.349) 2 CONTROL VALVES CCLS (EDC) AND RELEVANT PARTS (07) - HYDRAULIC SYSTEM
for mechanical hydraulic power l
10
11
1.82.7/b
7
4
5
14
8
2
8
1.82.7/c
1
13
9
12
7
1.82.7/b
5
1.82.7/c
3
1.82.7/f
6

Артикул

Название

Примечание

Количество

1

47124669

CONTROL VALVE

1шт.

2

16100821

NUT,M8, Cl 10

3шт.

3

5195170

BOLT

3шт.

4

5199100

PLATE

1шт.

5

5199099

VALVE

2шт.

6

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

2шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

2шт.

10

5192184

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 ALL CASE IH TRACTOR (7/03-), REMAN FOR NEW P/N 87730706

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

11

5199101

COVER

INCL.13,15

1шт.

12

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

13

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

14

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

Выбрано товаров: 18
