Запчасти Case IH MXU115 (1.82.7/14[02]) - (VAR.259/2) 4 CCLS (EDC) CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM

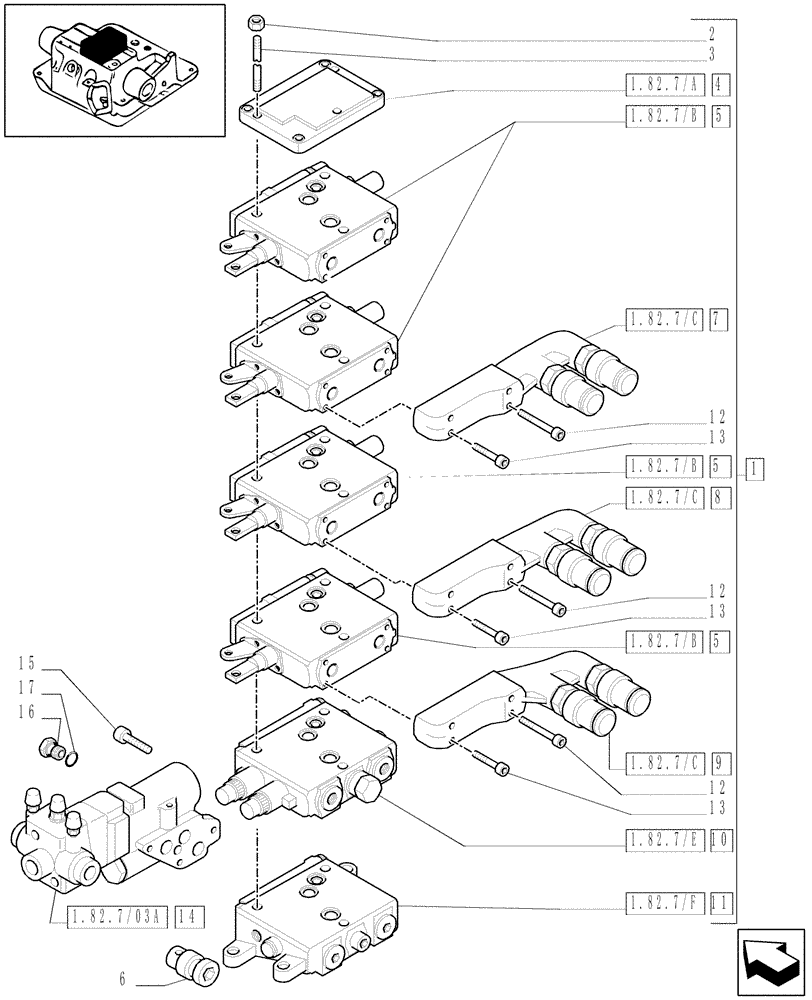

Схема запчастей Case IH MXU115 - (1.82.7/14[02]) - (VAR.259/2) 4 CCLS (EDC) CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM
13
5
5
9
14
1.82.7/b
6
1.82.7/b
1.82.7/c
1.82.7/c
2
3
8
1.82.7/a
1.82.7/03a
1
17
13
13
12
1.82.7/e
1.82.7/c
11
10
16
7
1.82.7/f
1.82.7/b
5
15
12
12
4

Артикул

Название

Примечание

Количество

1

47135750

CONTROL VALVE

1шт.

2

16100821

NUT,M8, Cl 10

3шт.

3

47129476

THREADED TIE-ROD,M8

ROD

3шт.

4

5192188

BODY

1шт.

5

5199099

VALVE

4шт.

6

47131575

VALVE PRESSURE RELIE

1шт.

7

47123063

QUICK MALE COUPLING

1шт.

8

47123061

QUICK MALE COUPLING

1шт.

9

47123059

QUICK MALE COUPLING

1шт.

10

5192187

CONTROL VALVE

1шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all CASE IH TRACTOR (7/03-) Reman for New P/N 5192187

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

5192184

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 ALL CASE IH TRACTOR (7/03-), REMAN FOR NEW P/N 87730706

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

14

5192069

BRAKE VALVE

1шт.

15

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

15

14359424

SCREW,M8 x 75mm, Cl 8.8

M8X75

2шт.

16

47131496

PLUG,Hex, M12 x 1

M12X1

1шт.

17

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 22
