Запчасти Case IH MXU115 (1.82.7/13[02]) - (VAR.259/1) 2 CCLS (EDC) CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM

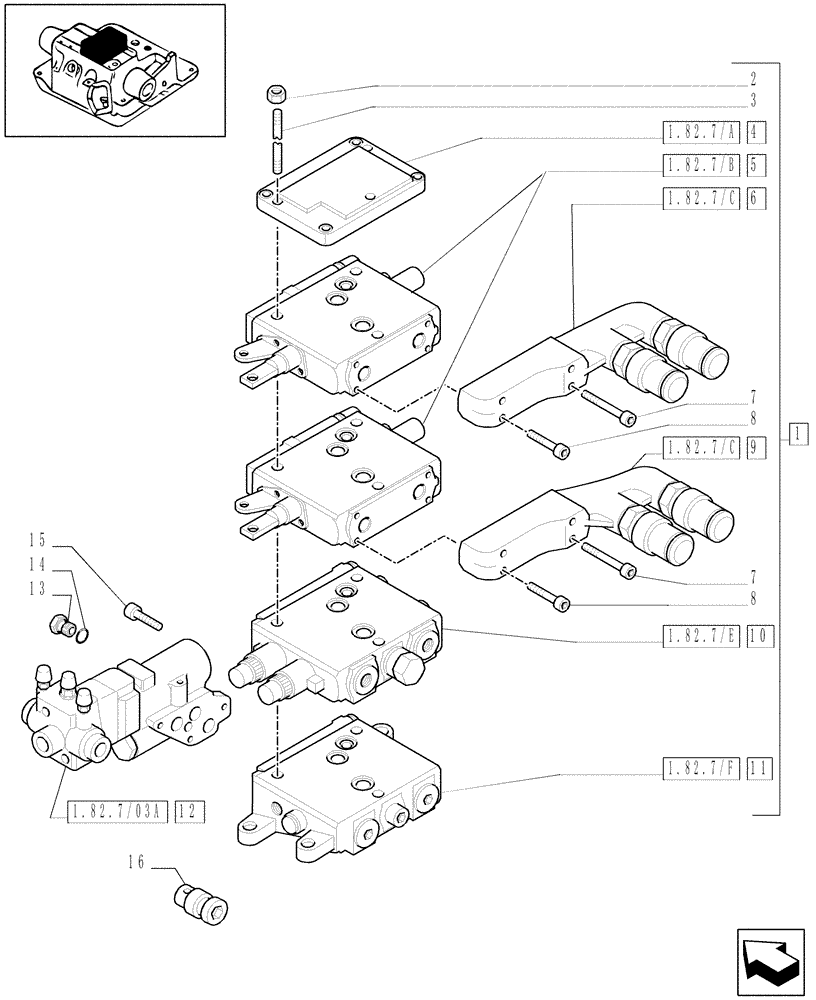

Схема запчастей Case IH MXU115 - (1.82.7/13[02]) - (VAR.259/1) 2 CCLS (EDC) CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS - C5504 (07) - HYDRAULIC SYSTEM
5
1.82.7/b
15
7
1.82.7/e
1.82.7/f
6
4
1
16
1.82.7/c
7
1.82.7/03a
10
8
8
3
12
13
2
1.82.7/c
11
9
14
1.82.7/a

Артикул

Название

Примечание

Количество

1

47124664

CONTROL VALVE

ASSY

1шт.

2

16100821

NUT,M8, Cl 10

3шт.

3

5195168

TIE-ROD,M8

3шт.

4

5192188

BODY

1шт.

5

5199099

VALVE

2шт.

6

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

9

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

10

5192187

CONTROL VALVE

2шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125, MXU135 all CASE IH TRACTOR (7/03-) Reman for New P/N 5192187

2шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

5192184

CONTROL VALVE

1шт.

12

5192069

BRAKE VALVE

1шт.

13

47128010

LEVER

M12X1

1шт.

14

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

15

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

15

14359424

SCREW,M8 x 75mm, Cl 8.8

M8X75

2шт.

16

47131575

VALVE PRESSURE RELIE

1шт.

Выбрано товаров: 21
