Запчасти Case IH MXU115 (1.82.7/10[02]) - (VAR.258/1) 2 CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM

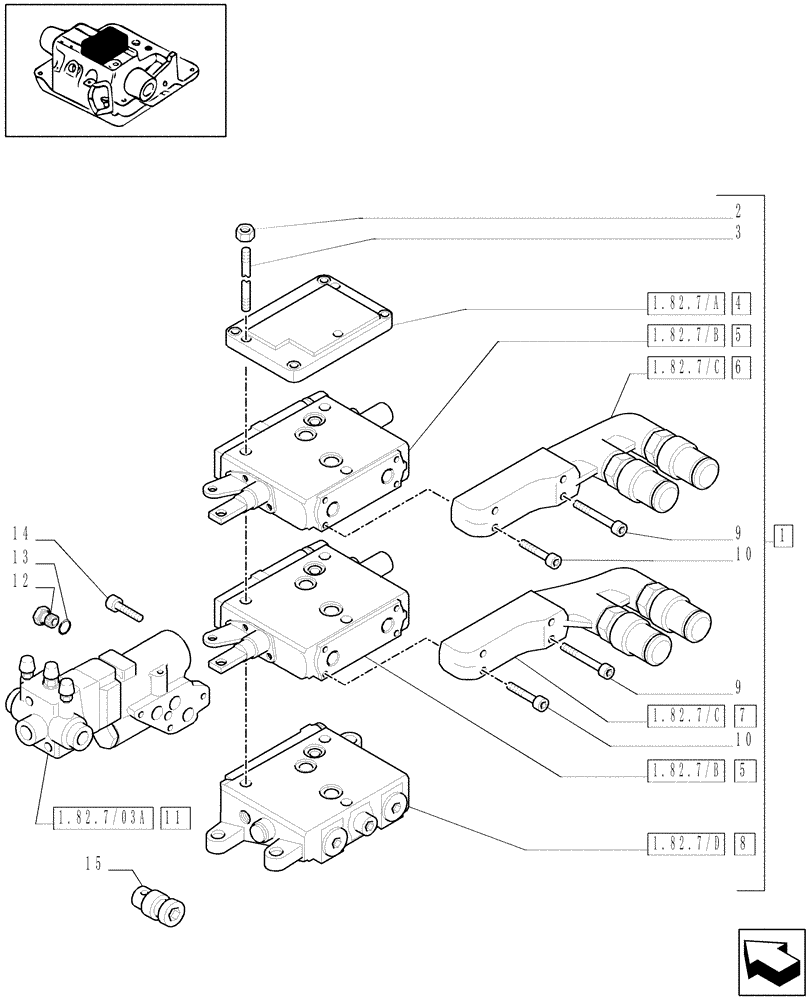

Схема запчастей Case IH MXU115 - (1.82.7/10[02]) - (VAR.258/1) 2 CONTROL VALVES WITH TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS (07) - HYDRAULIC SYSTEM
1.82.7/b
9
5
1.82.7/a
10
3
15
1
8
10
12
9
6
1.82.7/c
4
1.82.7/b
14
1.82.7/c
1.82.7/d
11
5
13
7
1.82.7/03a
2

Артикул

Название

Примечание

Количество

1

47124649

CONTROL VALVE

ASSY

1шт.

2

16100821

NUT,M8, Cl 10

3шт.

3

5195170

BOLT

3шт.

4

5192188

BODY

1шт.

5

5199099

VALVE

2шт.

6

47123061

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

6

87381963

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

7

47123059

QUICK MALE COUPLING

, Serial Range: -C5279

1шт.

7

87381958

QUICK MALE COUPLING

, Start Serial: D5279

1шт.

8

5192185

HYD VALVE SECTION

1шт.

9

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

10

47129474

HEX SOC SCREW,M6 x 35mm

M6X35

4шт.

11

5192069

BRAKE VALVE

1шт.

12

47131496

PLUG,Hex, M12 x 1

M12X1

1шт.

13

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

14

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

14

14359424

SCREW,M8 x 75mm, Cl 8.8

M8X75

2шт.

15

47131575

VALVE PRESSURE RELIE

1шт.

Выбрано товаров: 18
