Запчасти Case IH MXU115 (1.82.7/06[04]) - (VAR.256) 2 CONTROL VALVES CCLS (EDC) AND RELEVANT PARTS - D5504 (07) - HYDRAULIC SYSTEM

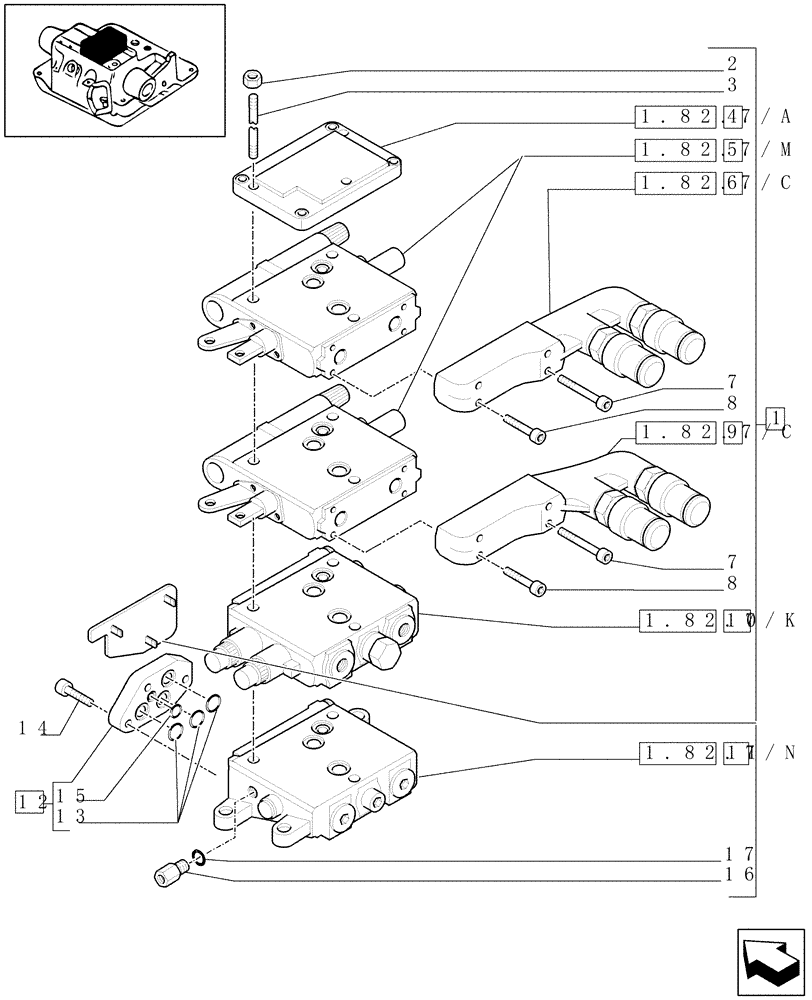

Схема запчастей Case IH MXU115 - (1.82.7/06[04]) - (VAR.256) 2 CONTROL VALVES CCLS (EDC) AND RELEVANT PARTS - D5504 (07) - HYDRAULIC SYSTEM
1.82.7/c
1.82.7/k
8
3
7
13
14
2
1.82.7/n
11
1.82.7/m
4
7
16
6
1.82.7/c
12
8
15
1.82.7/a
17
1
9
5
10

Артикул

Название

Примечание

Количество

1

87546165

CONTROL VALVE

1шт.

2

5195169

NUT,M8

3шт.

3

5195168

TIE-ROD,M8

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

2шт.

87546169R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 all (7/03-)

2шт.

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

47123061

QUICK MALE COUPLING

1шт.

6

87381963

QUICK MALE COUPLING

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

87546170

CONTROL VALVE

2шт.

84175671R

REMAN-HYD VALVE

MXU100, MXU115, MXU125 all CASE IH TRACTOR (7/03-) Reman for New P/N 87546170

2шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

MXU115, MXU125 BOTH CASE IH TRACTOR (7/03-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

5199101

COVER

Incl. 13,15

1шт.

13

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

14

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

15

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

16

5191704

CHECK VALVE

Incl. 17

1шт.

17

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

Выбрано товаров: 24
