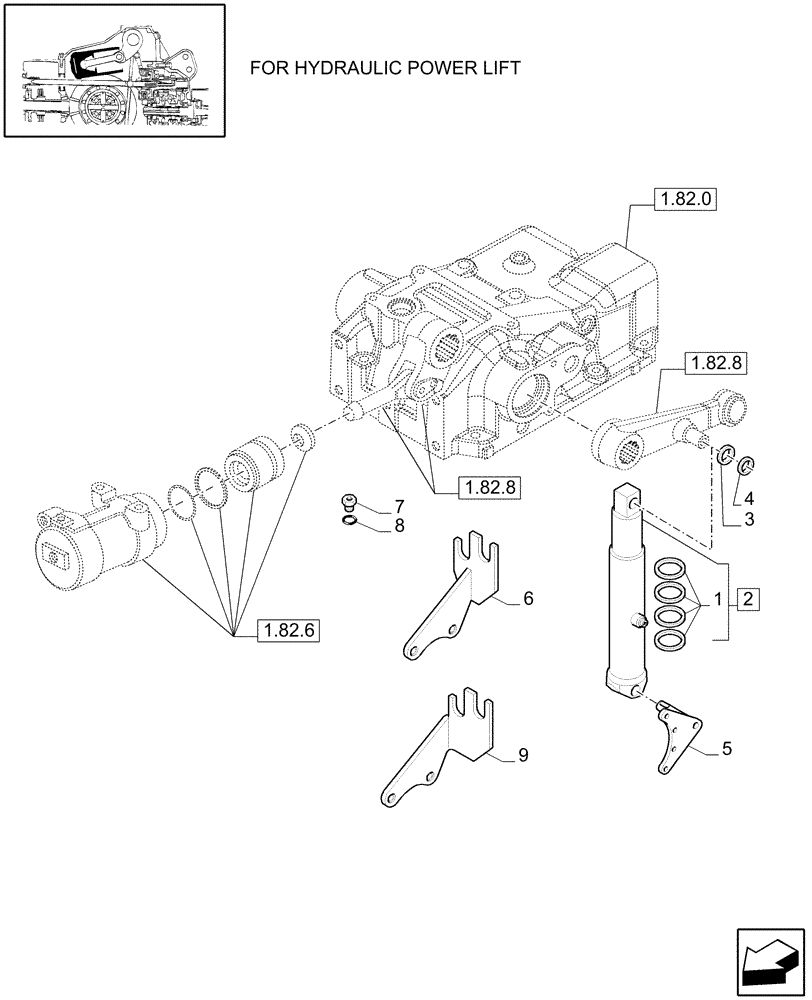

Запчасти Case IH MXU115 (1.82.6/01[01]) - (VAR.787) PISTON AND CYLINDER (07) - HYDRAULIC SYSTEM

1

5192066

SEAL KIT

, Serial Range: -C4870

1шт.

1

47134497

SEAL KIT

, Start Serial: D4870

1шт.

2

5191968

LIFT CYLINDER

, Serial Range: -C4870

1шт.

2

47134496

LIFT CYLINDER,50mm Rod, 170mm Stroke

, Start Serial: D4870

1шт.

3

44018747

WASHER,28mm ID x 40mm OD x 3mm Thk

28X40X35

1шт.

4

11067676

SNAP RING,M28, Ext

1шт.

5

5191004

SUPPORT

LH

1шт.

6

82024941

SUPPORT

, Serial Range: -EKP003534

1шт.

W/Heavy Duty Axle

1шт.

6

82025697

SUPPORT

MXU100 - MXU110, Serial Range: -EKP003534

1шт.

W/Light Duty Axle

1шт.

6

87353473

SUPPORT

, Start Serial: EKP003535

1шт.

7

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

8

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

9

87353466

SUPPORT

, Start Serial: EKP003535

1шт.
