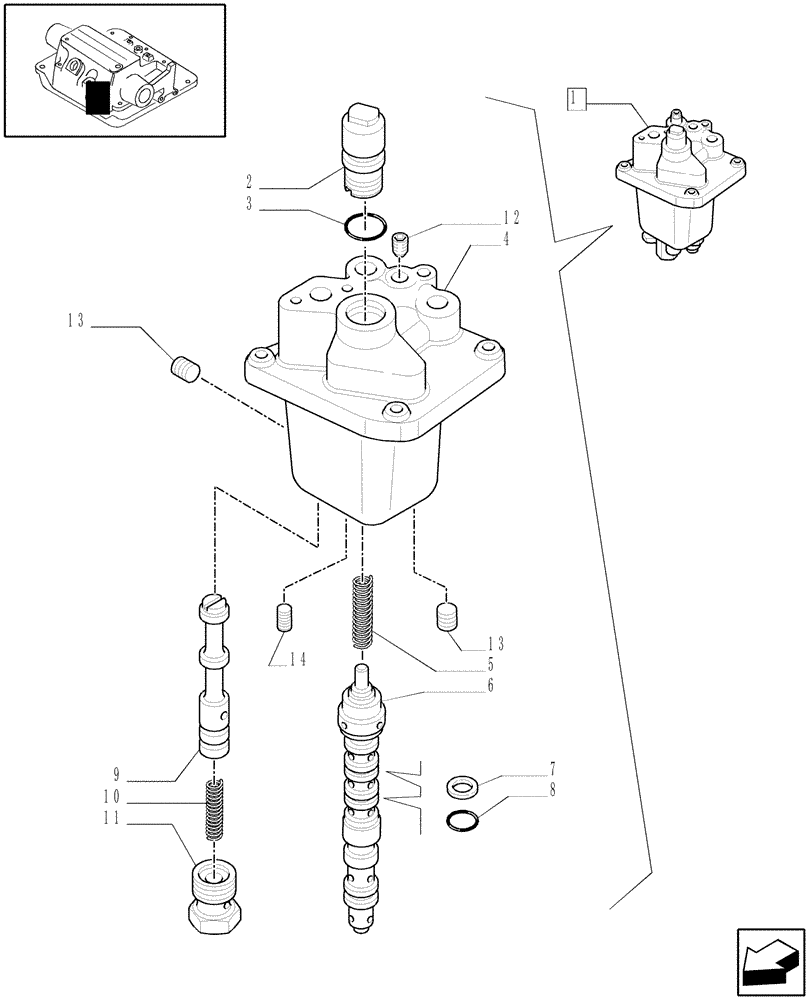

Запчасти Case IH MXU115 (1.82.4/ A[01]) - LIFTER, DISTRIBUTOR AND VALVES BREAKDOWN - D5151 (07) - HYDRAULIC SYSTEM

1

87306808

CONTROL VALVE

ASSY, Load Sensing

1шт.

2

87306890

CAP

1шт.

3

14453981

O-RING,0.989" ID x 0.07" Width

(M25.12 ID x 1.78 Thk)

1шт.

4

87306837

VALVE BODY

Incl.12-14

1шт.

5

4973361

SPRING,Compression, 15.5mm OD x 50.5mm L

1шт.

6

87306827

PILOT VALVE

ASSY

1шт.

7

14457381

O-RING,17.12mm ID x 2.62" Width

(M17.12 ID x 2.62 Thk)

5шт.

8

5117726

WASHER,17.83mm ID x 22.19mm OD x 1.14mm Thk

2шт.

9

87306822

SPOOL

1шт.

10

83948888

SPRING

1шт.

11

87306812

PLUG

M20x1.5

1шт.

12

10275550

PLUG

M12 x 1.25

1шт.

13

5162458

PLUG,M10 x 1.25

M10x1.25

2шт.

14

14326101

PLUG,M8 x 11

M12x1.25

1шт.
