Запчасти Case IH MXU115 (1.82.1/13[02]) - (VAR.009-013) 3/4 REMOTES FOR CCLS PUMP FOR MDC - LIFTER LINES (07) - HYDRAULIC SYSTEM

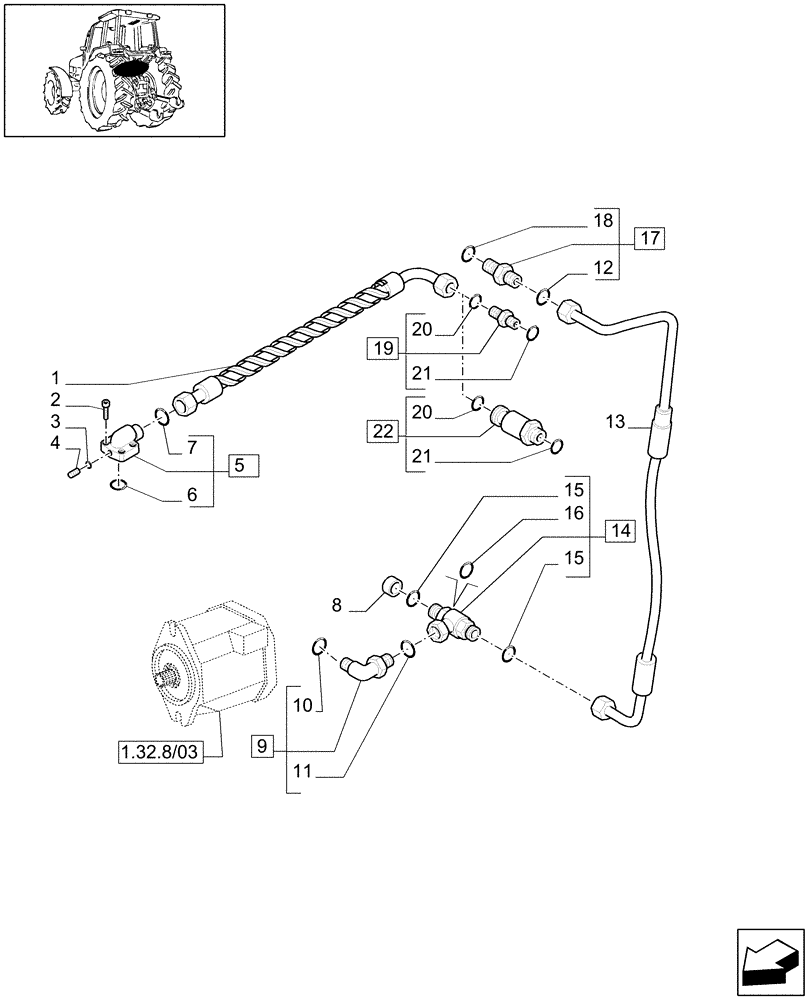

Схема запчастей Case IH MXU115 - (1.82.1/13[02]) - (VAR.009-013) 3/4 REMOTES FOR CCLS PUMP FOR MDC - LIFTER LINES (07) - HYDRAULIC SYSTEM
16
9
10
4
11
1.32.8/03
12
19
7
21
15
2
3
22
5
21
20
13
6
14
15
17
20
18
8
1

Артикул

Название

Примечание

Количество

1

87312959

FLEXIBLE HOSE,16mm ID x 540mm L, SAE 100R16

560MM

1шт.

2

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

3

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

4

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

5

47130523

FLANGE

1шт.

6

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

(M32.92 ID x 3.53 Thk)

1шт.

7

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

8

5189973

PLUG

9/16-18

1шт.

9

47135296

90 ELBOW,9/16"-18 x 7/16"-20

1шт.

10

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

2шт.

11

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

12

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

13

47135605

FLEXIBLE HOSE

9/16-18

1шт.

14

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

15

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

90 Duro, .301"ID x .070"Thk

2шт.

16

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

17

5185045

HYD CONNECTOR

9/16-18, M12x1.5, Serial Range: -C5151

1шт.

18

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

2шт.

19

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

1-3/16"-12, M27 x 2, Serial Range: -C5151

1шт.

20

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

21

14438185

O-RING,24mm ID x 3mm

1шт.

22

87317008

HYD CONNECTOR

1" 13/16-12, M27x2, Start Serial: D5151

1шт.

Выбрано товаров: 22
