Запчасти Case IH MXU115 (1.82.1/11) - (VAR.831-831/1) CCLS WITH 2 MECHANICAL CONTROL VALVE - LIFTER, LINES (07) - HYDRAULIC SYSTEM

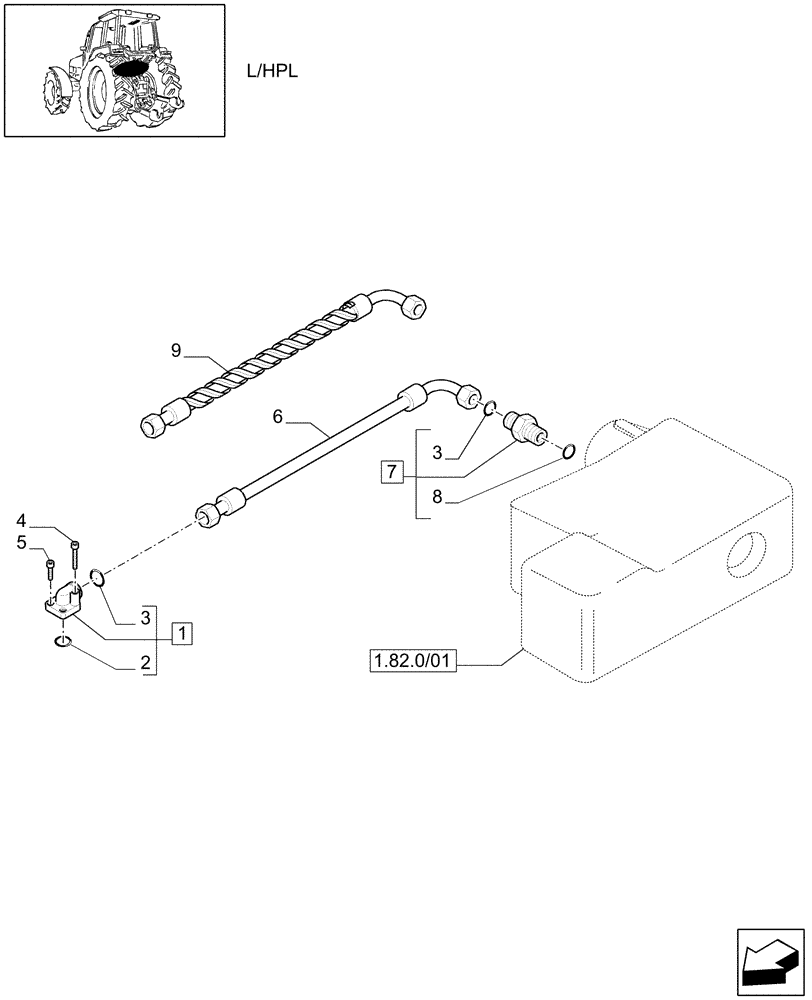

Схема запчастей Case IH MXU115 - (1.82.1/11) - (VAR.831-831/1) CCLS WITH 2 MECHANICAL CONTROL VALVE - LIFTER, LINES (07) - HYDRAULIC SYSTEM
1
7
5
8
1.82.0/01
3
4
2
9
6
3
l/hpl

Артикул

Название

Примечание

Количество

1

5196844

HYD CONNECTOR

M14X1,5, 11/16"-16

1шт.

2

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

3

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

4

47130532

FLEXIBLE HOSE

11/16"-16, MM.890

1шт.

5

5188442

HYD CONNECTOR,11/16-16 ORFS x M14 x 1.5 ORB

11/16"-16, M14X1.5

1шт.

6

47130523

FLANGE

1шт.

7

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

8

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

1шт.

9

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

10

47128470

FLEXIBLE HOSE

1-13/16"-12, Serial Range: -C5151

1шт.

11

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

1-3/16"-12, M27 x 2

1шт.

12

14438185

O-RING,24mm ID x 3mm

1шт.

13

5189973

PLUG

9/16-18

1шт.

14

5185507

O-RING,8.92mm ID x 1.83mm Width

M8.92 ID x 1.83 Thk

1шт.

15

87312959

FLEXIBLE HOSE,16mm ID x 540mm L, SAE 100R16

560MM, Start Serial: D5151

1шт.

Выбрано товаров: 15
