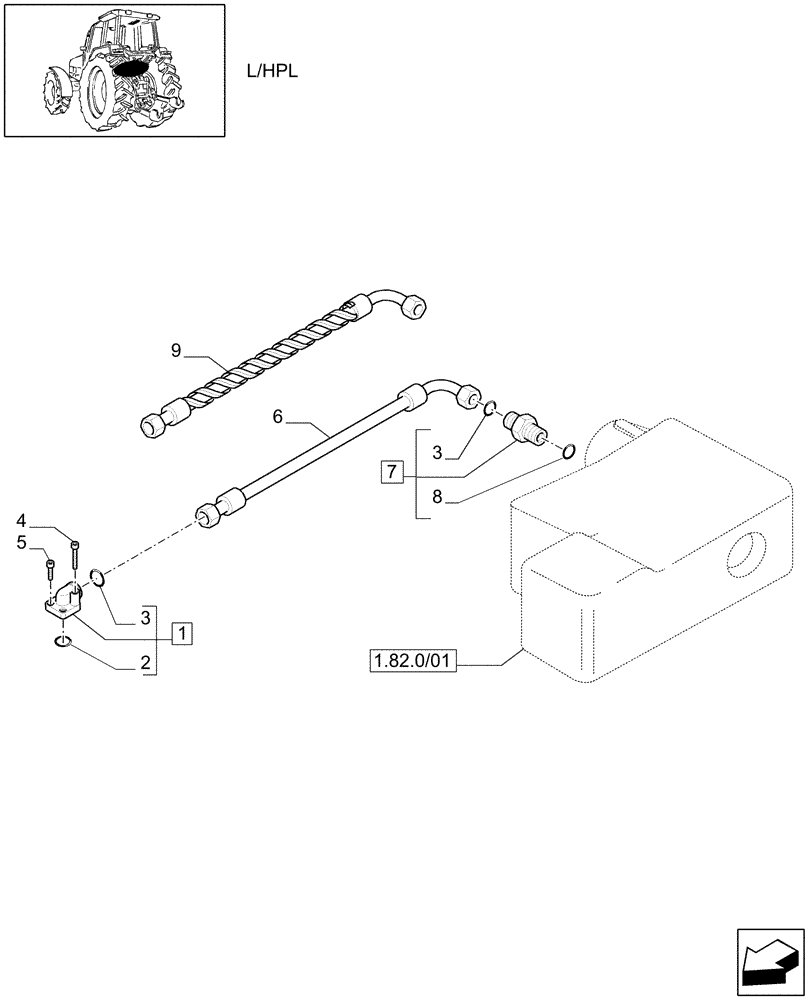

Запчасти Case IH MXU115 (1.82.1/10) - (VAR.719) 2 CONTROL VALVES - LIFTER, LINES (07) - HYDRAULIC SYSTEM

1

47134223

FLANGE

1шт.

2

14458381

O-RING,32.99mm ID x 2.62" Width

1шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

3шт.

4

14306920

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8, Full Thd

2шт.

5

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

6

47128470

FLEXIBLE HOSE

1-13/16"-12, Serial Range: -C5151

1шт.

7

5185041

HYD CONNECTOR,1"3/16-12 ORFS x M22 x 1.5 ORB

1-3/16"-12, M22X1,5

1шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

9

87312959

FLEXIBLE HOSE,16mm ID x 540mm L, SAE 100R16

560MM, Start Serial: D5151

1шт.
