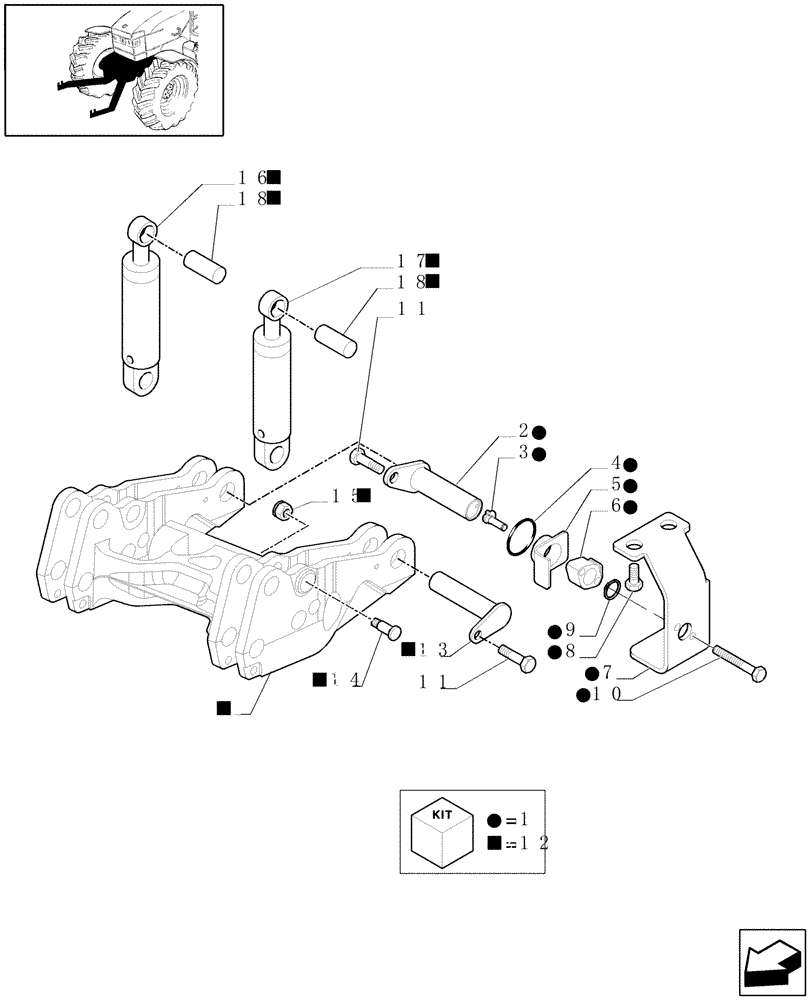

Запчасти Case IH MXU115 (1.81.9/05[02]) - (VAR.592-623-639-652) FRONT HPL AND PTO W/SHAFT (6 SPLINES) W/FRONT BRAKES - CYLINDERS AND SUPPORT (07) - HYDRAULIC SYSTEM

1

47057747

SENSOR

1шт.

2

47057595

PIN,40mm OD x 104mm L

1шт.

3

5198408

CONTROL

1шт.

4

80272470

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

2.62x39.34

1шт.

5

47057598

BRACKET

1шт.

6

82021035

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

7

47057601

SUPPORT

1шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

9

11087976

CIRCLIP,Ext., M8, BLO

1шт.

10

86544168

BOLT,Hex, M5 x 35mm, Cl 8.8

2шт.

11

11103031

BOLT,Hex, M10 x 18, 10.9, Full Thd

2шт.

12

47057772

HITCH

ASSY

1шт.

13

1-35-795-456

PIVOT PIN

1шт.

14

1-35-795-459

PIVOT PIN

2шт.

15

1-35-795-420

SAFETY NUT,M24x1.5

M24x1.5

2шт.

16

87562625

LIFT CYLINDER

1шт.

Seal Kit 87563229

1шт.

17

87562599

LIFT CYLINDER

1шт.

Seal Kit 87563229

1шт.

18

87562641

PIN

2шт.
