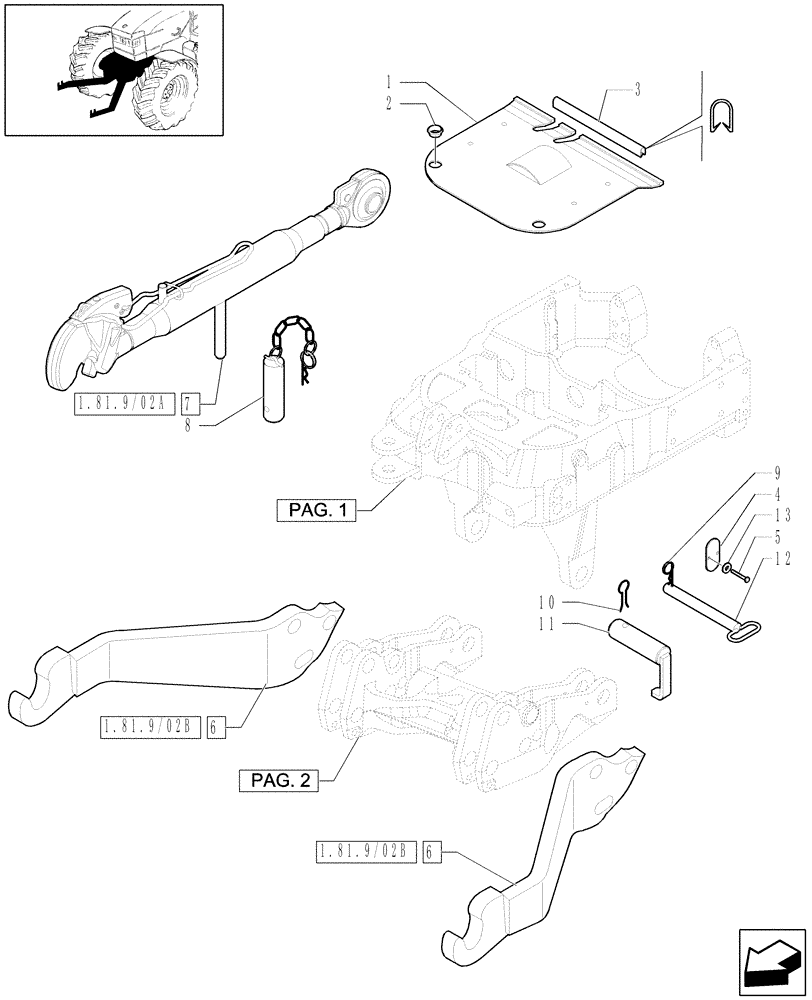

Запчасти Case IH MXU115 (1.81.9/03[03]) - (VAR.558-559-562-563) FRONT HPL AND FRONT PTO WITH SHAFT WITH 6 SPLINES - IMPLEMENT ATTACHMENT (07) - HYDRAULIC SYSTEM

1

47057230

COVER

1шт.

2

47057762

SLEEVE,25mm ID x 36mm OD x 10mm L

2шт.

3

83964601

MOLDING,164mm L

164-166 mm

2шт.

4

47057672

PLATE

1шт.

5

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

6

87302188

LOWER LINK

1шт.

7

47057643

TOP LINK

1шт.

8

87302858

HITCH PIN

1шт.

9

47056731

SPRING CLIP

1шт.

10

5112606

COTTER PIN,2.5mm OD x 66.5mm L

1шт.

11

47057476

PIN

1шт.

12

47057367

PIN

1шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
