Запчасти Case IH MXU115 (1.81.9/01[05]) - (VAR.173) FRONT HYDRAULIC LIFT - POTENTIOMETER AND BREAKDOWN (07) - HYDRAULIC SYSTEM

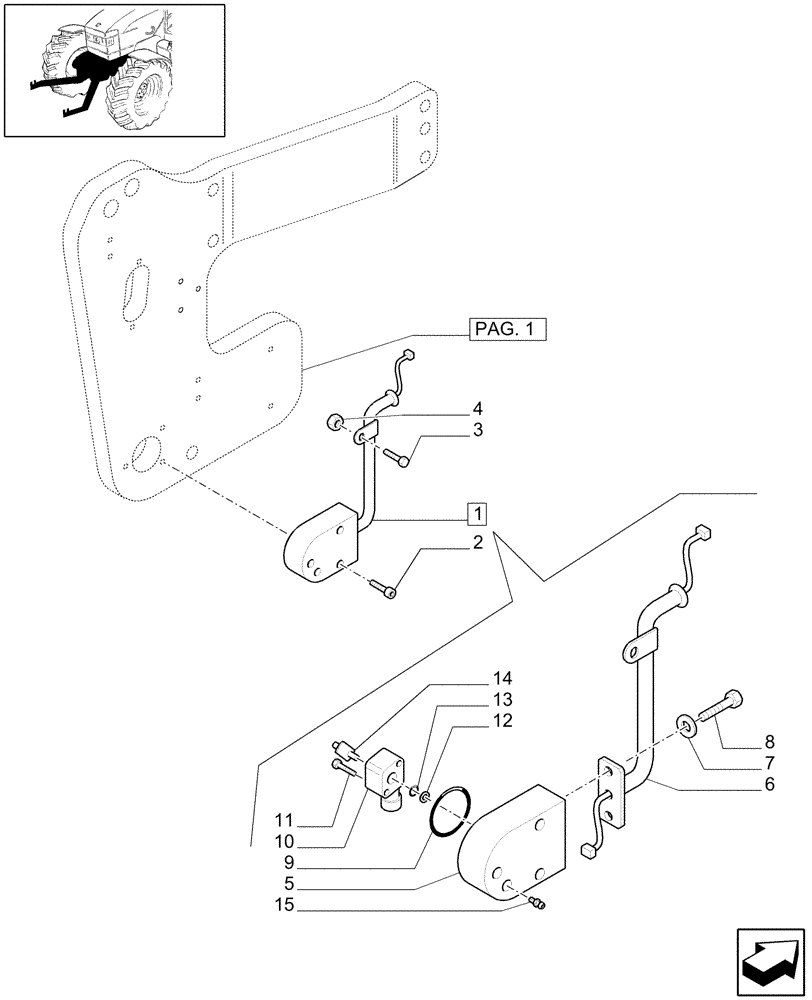

Схема запчастей Case IH MXU115 - (1.81.9/01[05]) - (VAR.173) FRONT HYDRAULIC LIFT - POTENTIOMETER AND BREAKDOWN (07) - HYDRAULIC SYSTEM
12
6
pag. 1
9
15
11
14
4
3
13
7
8
2
10
5
1

Артикул

Название

Примечание

Количество

1

47133194

POTENTIOMETER

1шт.

2

14307834

HEX SOC SCREW,M10 x 1.25 x 45mm, Cl 10.9

M10

3шт.

3

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

1шт.

4

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

5

5198407

COVER

1шт.

6

47133192

HARNESS

1шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

9

14464580

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

10

82021035

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

11

10978424

BOLT,Hex, M5 x 30mm, Cl 8.8

2шт.

12

11087976

CIRCLIP,Ext., M8, BLO

1шт.

13

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

1шт.

14

5198408

CONTROL

1шт.

15

13407211

LUBE NIPPLE,M10 x 1

1шт.

Выбрано товаров: 15
