Запчасти Case IH MXU115 (1.80.7[05]) - PTO, CLUTCH - VALVE AND RELEVANT PARTS - C5806 (07) - HYDRAULIC SYSTEM

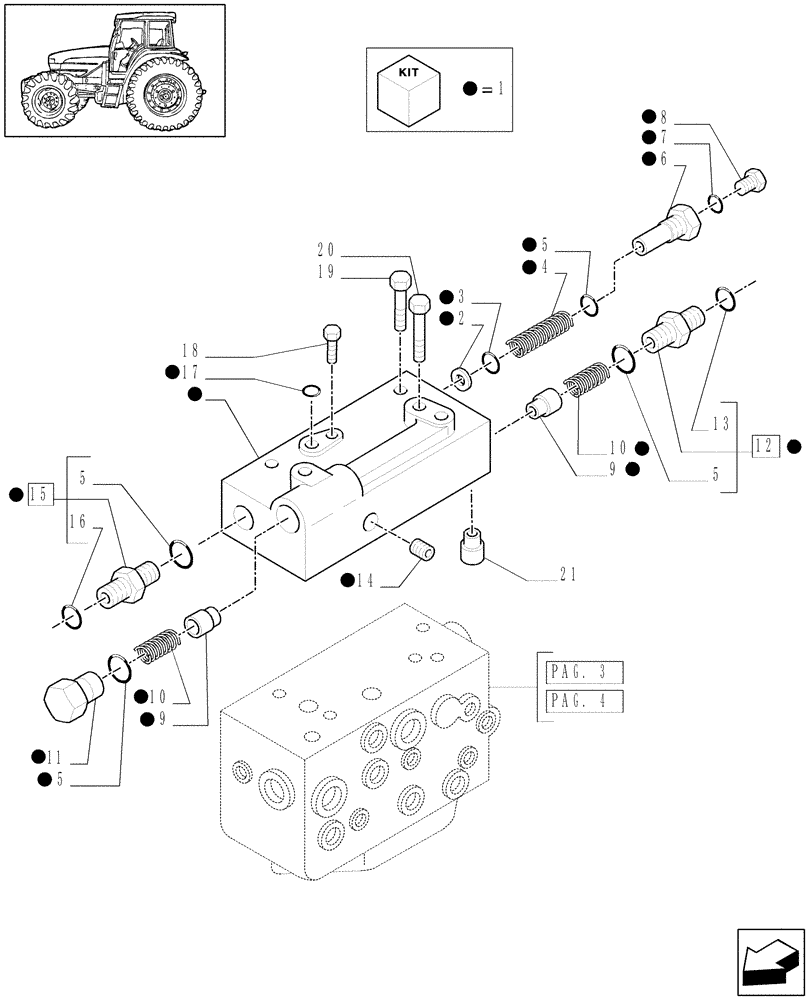

Схема запчастей Case IH MXU115 - (1.80.7[05]) - PTO, CLUTCH - VALVE AND RELEVANT PARTS - C5806 (07) - HYDRAULIC SYSTEM
5
g. 3
7
5
1
1
5
1
a
13
12
1
2
1
p
5
10
21
a
9
1
1
1
1
1
16
4
18
17
20
p
1
1
14
1
1
15
1
8
1
1
1
19
1
9
1
1
1
3
6
10
g. 4

Артикул

Название

Примечание

Количество

1

47123785

CONTROL VALVE

1шт.

2

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

3

13397776

SNAP RING,M16, Int

1шт.

4

5157119

SPRING,11.5mm x 127mm

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

6

47128481

PLUG

1шт.

7

10260150

SEALING WASHER,M10.2 x 14 x 1, Alum

1шт.

8

11903114

PLUG,M10 x 1.25 x 11

1шт.

9

5169565

VALVE,By-Pass

2шт.

10

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

2шт.

11

47123781

PLUG,M22 x 1.5

1шт.

12

47123674

HYD CONNECTOR

M22X1,5, 13/16"-16UN - 2A

1шт.

13

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

14

80236622

PLUG

1шт.

15

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

M22X1,5,1"-14UNS - 2A

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

17

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

19

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

20

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

21

47137823

HYD CONNECTOR

1шт.

Выбрано товаров: 21
