Запчасти Case IH MXU115 (1.80.5/ B) - FRONT POWER TAKE-OFF (WITH 6 SPLINES) - CYLINDER - BREAKDOWN (07) - HYDRAULIC SYSTEM

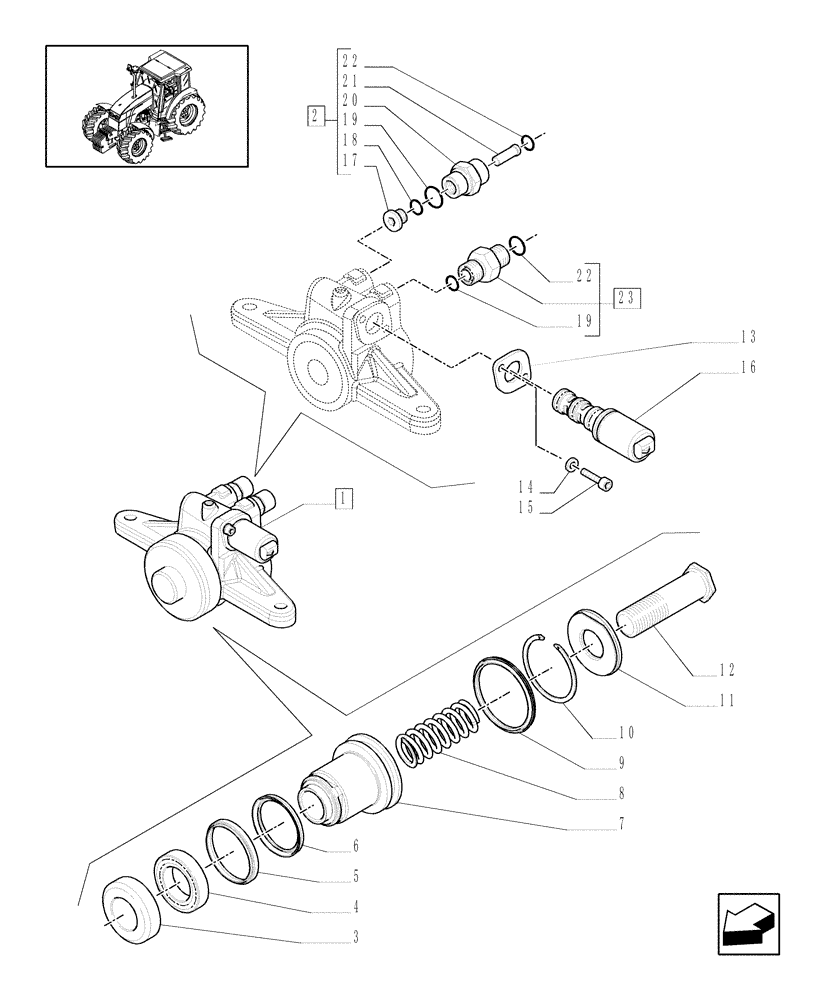

Схема запчастей Case IH MXU115 - (1.80.5/ B) - FRONT POWER TAKE-OFF (WITH 6 SPLINES) - CYLINDER - BREAKDOWN (07) - HYDRAULIC SYSTEM
16
8
10
11
4
1
19
14
22
20
6
2
7
15
3
19
12
5
18
21
9
13
22
17
23

Артикул

Название

Примечание

Количество

1

47127611

CYLINDER

1шт.

2

47127612

FRONT PTO ASSY

1шт.

3

5196271

BEARING CARRIER

1шт.

4

5196275

BALL BEARING,45.00mm x 75.00mm x 16.00mm

1шт.

5

5196284

SEAL,65.00mm ID x 73.60mm OD x 5.30mm

1шт.

6

5196268

SEAL,65mm ID x 77mm OD x 8.5mm Thk

1шт.

7

5196281

PISTON

1шт.

8

5196266

SPRING,55mm OD x 128mm L

1шт.

9

5196267

SEAL,80.00mm ID x 90.00mm OD x 7.00mm

1шт.

10

5196244

CIRCLIP,82.00mm x 94.00mm x 2.00mm

1шт.

11

5196283

PLUG,39.5mm ID x 89.60-89.82mm OD x 10mm Thk

1шт.

12

5196270

BOLT

1шт.

13

5194826

BRACKET

1шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

15

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

16

87723774

SOLENOID VALVE

1шт.

17

47127332

ORIFICE,M10 x 1

1шт.

18

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

19

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

20

47127489

HYD CONNECTOR,11/16"-16, M16 x 1.5

M16X1,5, 11/16"-16

1шт.

21

47126655

FILTER STRAINER

1шт.

22

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

23

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

M16X1,5, 11/16"-16

1шт.

Выбрано товаров: 23
