Запчасти Case IH MXU115 (1.80.5/ A) - FRONT POWER TAKE-OFF (WITH 6 SPLINES) - CLUTCH - BREAKDOWN (07) - HYDRAULIC SYSTEM

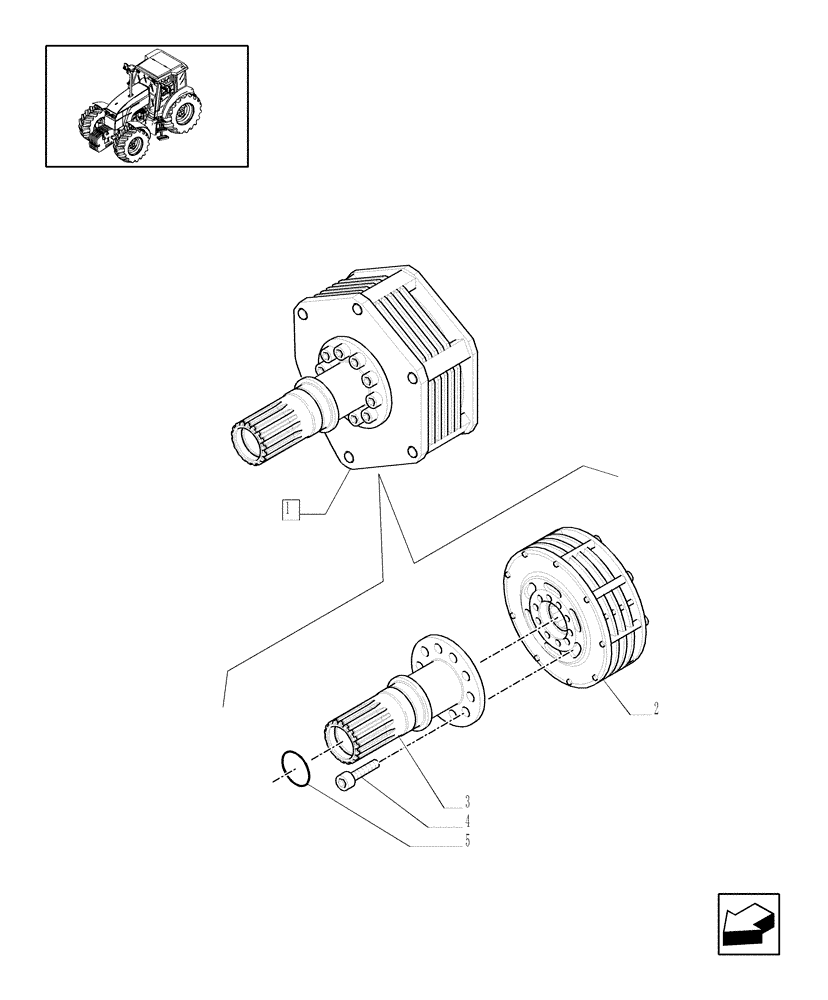

Схема запчастей Case IH MXU115 - (1.80.5/ A) - FRONT POWER TAKE-OFF (WITH 6 SPLINES) - CLUTCH - BREAKDOWN (07) - HYDRAULIC SYSTEM
1
4
2
3
5

Артикул

Название

Примечание

Количество

1

47127443

PTO CLUTCH

ASSY, Serial Range: -C5093

1шт.

1

87315409

PTO CLUTCH

ASSY, Start Serial: D5093

1шт.

2

47127441

PTO CLUTCH

, Serial Range: -C5093

1шт.

2

87308837

PTO CLUTCH,220.5mm OD

, Start Serial: D5093

1шт.

3

47127442

PTO SHAFT,22T

1шт.

4

13030430

HEX SOC SCREW,M10 x 1.25 x 22mm

M10X1,25X22

10шт.

5

14459180

O-RING,45.69mm ID x 2.62"

1шт.

Выбрано товаров: 7
