Запчасти Case IH MXU115 (1.80.5/04[01]) - (VAR.592-623-639-652) FRONT HPL AND PTO W/SHAFT (6 SPLINES) W/FRONT BRAKES - CLUTCH AND CYLINDERS (07) - HYDRAULIC SYSTEM

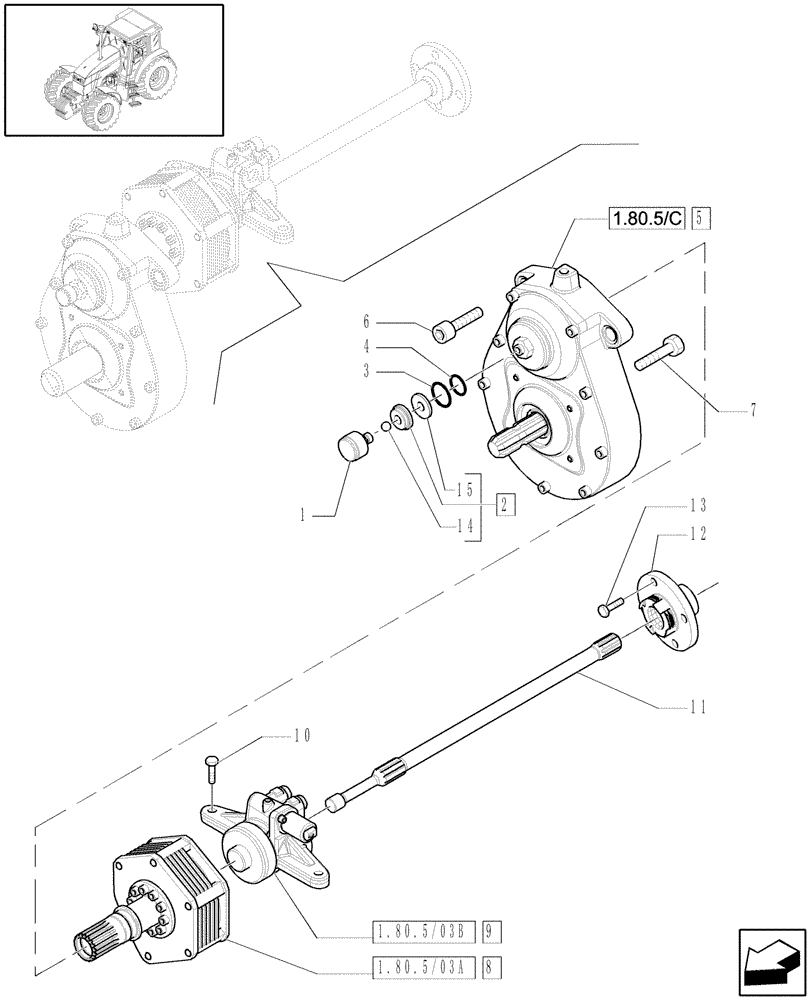

Схема запчастей Case IH MXU115 - (1.80.5/04[01]) - (VAR.592-623-639-652) FRONT HPL AND PTO W/SHAFT (6 SPLINES) W/FRONT BRAKES - CLUTCH AND CYLINDERS (07) - HYDRAULIC SYSTEM
12
1.80.5/03a
6
7
14
9
15
11
10
3
2
8
5
4
1
1.80.5/03b
13

Артикул

Название

Примечание

Количество

1

47126759

BREATHER,M12 x 1.25

1шт.

2

47128748

PLUG

1шт.

3

11069276

SNAP RING,M48, Ext

1шт.

4

11059576

SNAP RING,M36, Int

1шт.

5

47127612

FRONT PTO ASSY

ASSY

1шт.

6

14429534

HEX SOC SCREW,M20 x 60mm, Cl 10.9

M20x60

2шт.

7

15541131

SCREW,Hex, M12 x 1.25 x 65mm, Cl 10.9

1шт.

8

87315409

PTO CLUTCH

ASSY

1шт.

9

47057804

CYLINDER

ASSY

1шт.

10

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

11

87351594

DRIVE SHAFT,644mm L

1шт.

12

47127689

HUB

1шт.

13

11112624

BOLT,M12 x 35, 8.8, Full Thd

M12x1.75x35, MXU100, MXU110

4шт.

13

15215724

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

M12x50, MXU115, MXU125, MXU135

4шт.

14

20419380

BALL,12.7mm Dia

D=12,7

1шт.

15

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

Выбрано товаров: 16
