Запчасти Case IH MXU115 (1.80.5/03[01]) - (VAR.558-559-562-563) FRONT HPL AND FRONT PTO WITH SHAFT WITH 6 SPLINES - CLUTCH AND CYLINDERS (07) - HYDRAULIC SYSTEM

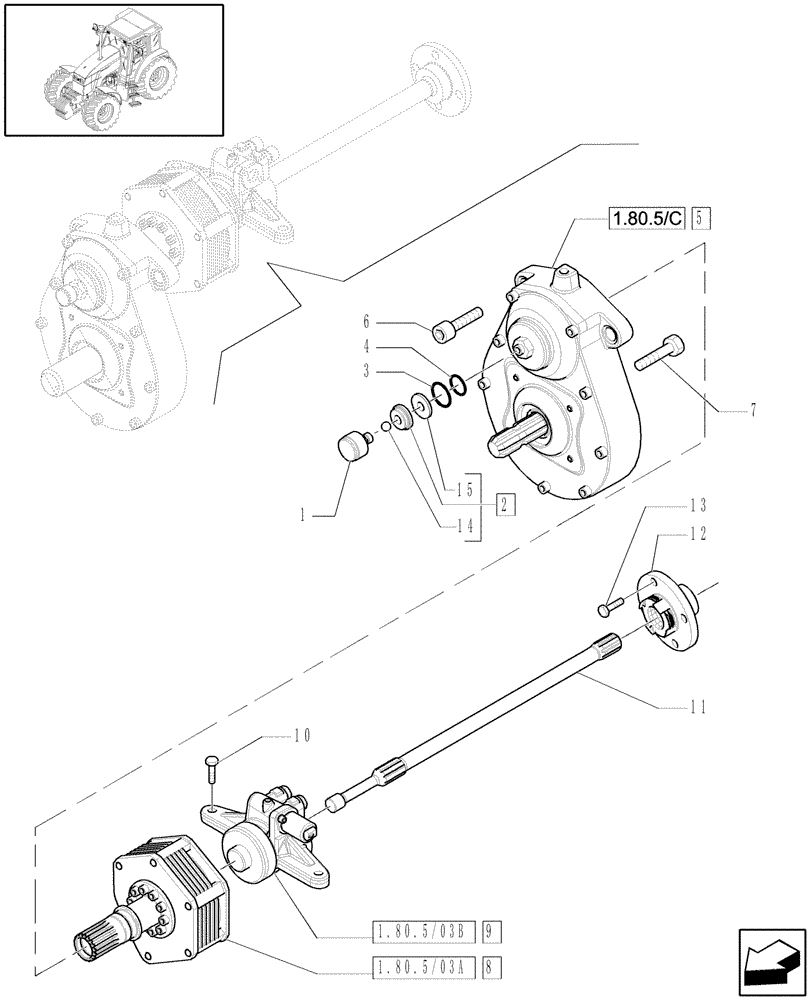

Схема запчастей Case IH MXU115 - (1.80.5/03[01]) - (VAR.558-559-562-563) FRONT HPL AND FRONT PTO WITH SHAFT WITH 6 SPLINES - CLUTCH AND CYLINDERS (07) - HYDRAULIC SYSTEM
1
12
15
1.80.5/03b
14
7
2
11
9
3
6
1.80.5/03a
8
5
10
4
13

Артикул

Название

Примечание

Количество

1

47126759

BREATHER,M12 x 1.25

1шт.

2

47128748

PLUG

1шт.

3

11069276

SNAP RING,M48, Ext

1шт.

4

11059576

SNAP RING,M36, Int

1шт.

5

47127612

FRONT PTO ASSY

ASSY

1шт.

6

14429534

HEX SOC SCREW,M20 x 60mm, Cl 10.9

2шт.

7

15541131

SCREW,Hex, M12 x 1.25 x 65mm, Cl 10.9

1шт.

8

87315409

PTO CLUTCH

ASSY

1шт.

9

47057804

CYLINDER

ASSY

1шт.

10

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

11

87351594

DRIVE SHAFT,644mm L

1шт.

12

47127689

HUB

1шт.

13

89824642

BOLT

M12x1.75x35

4шт.

For MXU100 L/CAB, MXU110 L/CAB only W\Var. 558 and MXU100 W\CAB, MXU110 W\CAB only

1шт.

13

15215724

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

4шт.

For MXU115, MXU125, MXU135 only

1шт.

14

20063500

BALL,12.7mm OD

D=12,7

1шт.

15

14458281

O-RING,1.237" ID x 1.443" OD x 0.103"

1шт.

Выбрано товаров: 18
