Запчасти Case IH MXU115 (1.80.5/01[01]) - FRONT POWER TAKE-OFF (6 GROOVES) WITH FRONT BRAKES - COVER, CLUTCH AND CYLINDERS (07) - HYDRAULIC SYSTEM

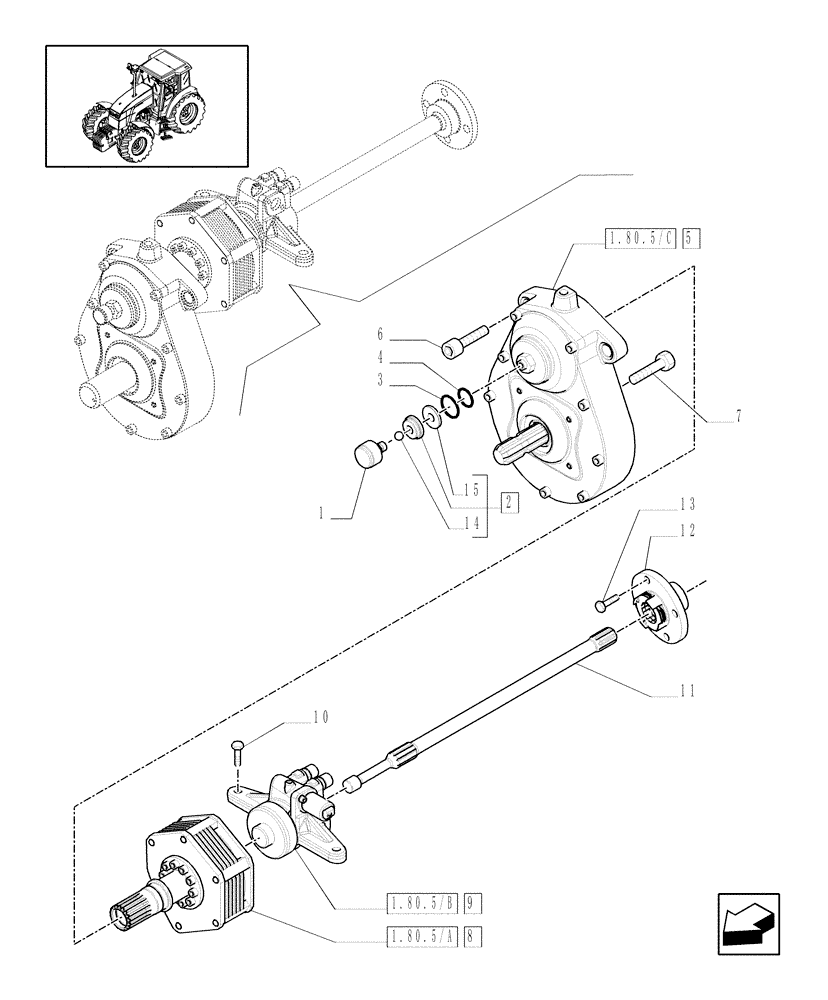

Схема запчастей Case IH MXU115 - (1.80.5/01[01]) - FRONT POWER TAKE-OFF (6 GROOVES) WITH FRONT BRAKES - COVER, CLUTCH AND CYLINDERS (07) - HYDRAULIC SYSTEM
8
15
11
9
13
3
14
1.80.5/c
1.80.5/a
2
12
5
1.80.5/b
7
6
4
10
1

Артикул

Название

Примечание

Количество

1

47126759

BREATHER,M12 x 1.25

1шт.

2

47128748

PLUG

1шт.

3

11069276

SNAP RING,M48, Ext

1шт.

4

11059576

SNAP RING,M36, Int

1шт.

5

47127612

FRONT PTO ASSY

1шт.

6

14429534

HEX SOC SCREW,M20 x 60mm, Cl 10.9

3шт.

7

15541131

SCREW,Hex, M12 x 1.25 x 65mm, Cl 10.9

1шт.

8

47127443

PTO CLUTCH

ASSY, Serial Range: -C5093

1шт.

8

87315409

PTO CLUTCH

ASSY, Start Serial: D5093

1шт.

9

47127611

CYLINDER

1шт.

10

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

11

47128749

DRIVEN SHAFT

1шт.

12

47127689

HUB

1шт.

13

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

14

20063500

BALL,12.7mm OD

D=12,7

1шт.

15

14458281

O-RING,1.237" ID x 1.443" OD x 0.103"

1шт.

Выбрано товаров: 16
