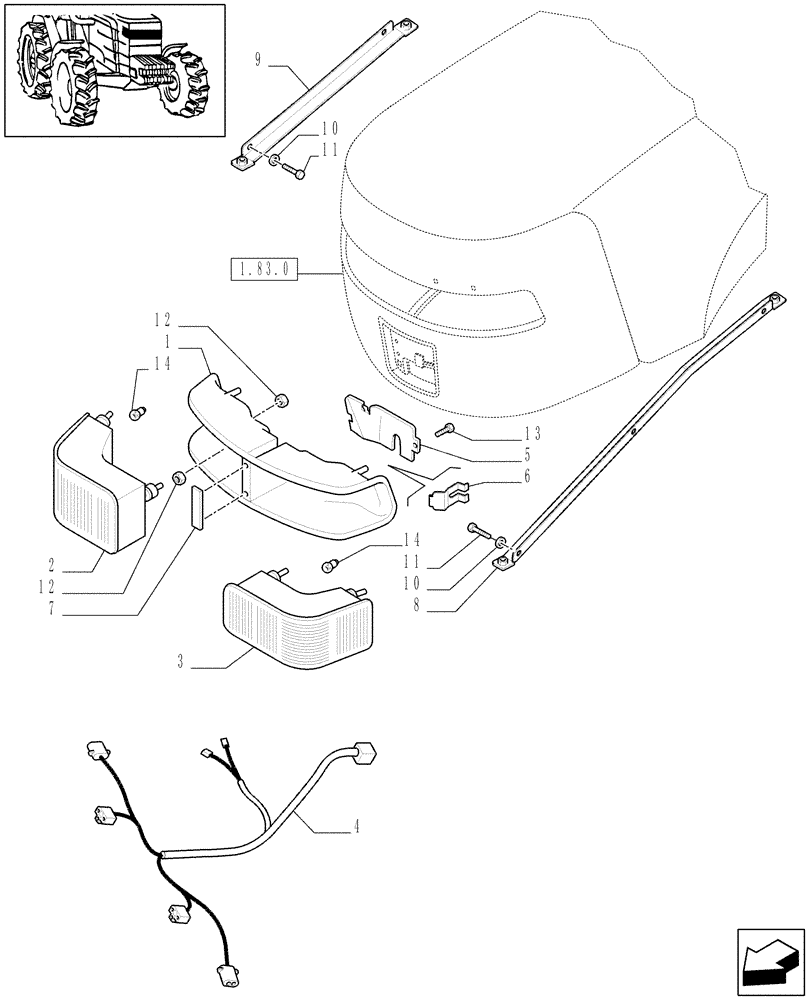

Запчасти Case IH MXU115 (1.75.6[01]) - FRONT LIGHT (06) - ELECTRICAL SYSTEMS

1

311297A1

HOUSING

1шт.

2

232448A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

RH, Incl. 14

1шт.

2

232450A2

HEADLIGHT,12V

RH/LH DIP. (VAR.760), Incl. 14

1шт.

2

232451A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH/LH DIP. (VAR.760), Incl. 14

1шт.

3

232449A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH, Incl. 14

1шт.

4

82032522

ELECTRIC CABLE

MXU100, MXU110, FRONT HOOD, Serial Range: -C6022

1шт.

4

82032535

CABLE

MXU115, MXU125, MXU135, FRONT HOOD, Serial Range: -C6022

1шт.

4

87720099

WIRE HARNESS

MXU100, MXU110, Start Serial: D6022

1шт.

4

87720098

WIRE HARNESS

MXU115, MXU125, MXU135, Start Serial: D6022

1шт.

5

303583A1

COVER

RH

1шт.

5

303585A1

COVER

LH

1шт.

6

259713A1

CLIP

6шт.

7

310962A1

LINING

1шт.

8

82035279

SUPPORT

1шт.

9

82035290

SUPPORT

MXU100, MXU110

1шт.

9

82035291

SUPPORT

MXU115, MXU125, MXU135

1шт.

10

10516474

LOCK WASHER

D=6

4шт.

11

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

12

86625060

PUSH-ON NUT,Self, Threading, 1/4"

8шт.

13

780-34616

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 16

2шт.

14

323093A1

BULB

12V, 50W

2шт.

14

87283179

BULB,H4, 12V, 60/55W

12V, 60/55W

2шт.
